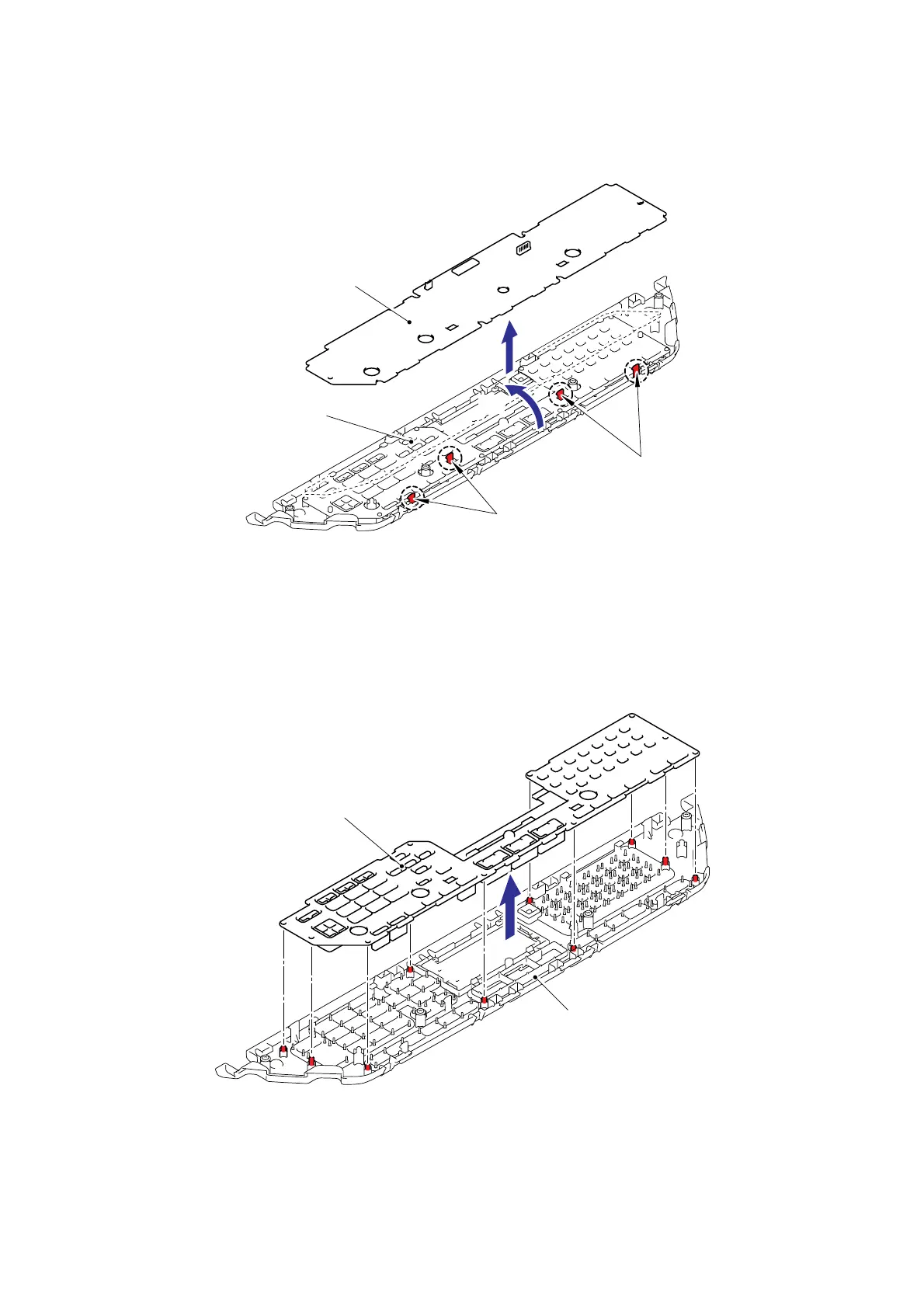

(4) Release the four Hooks, lift up the Panel PCB ASSY to the direction of the arrow 4a and
remove the Panel PCB ASSY.
Fig. 5-97
5.1.57 Printed Rubber Key
(1) Remove the Printed rubber key.
Fig. 5-98
Panel PCB ASSY
Panel unit
Hooks
Hooks
4b
4a
Panel cove
r
Printed rubber ke
y
