Brother DCP-8065DN - LT Sensor PCB ASSY

Confidential
5-142
5.2.15 LT Sensor PCB ASSY

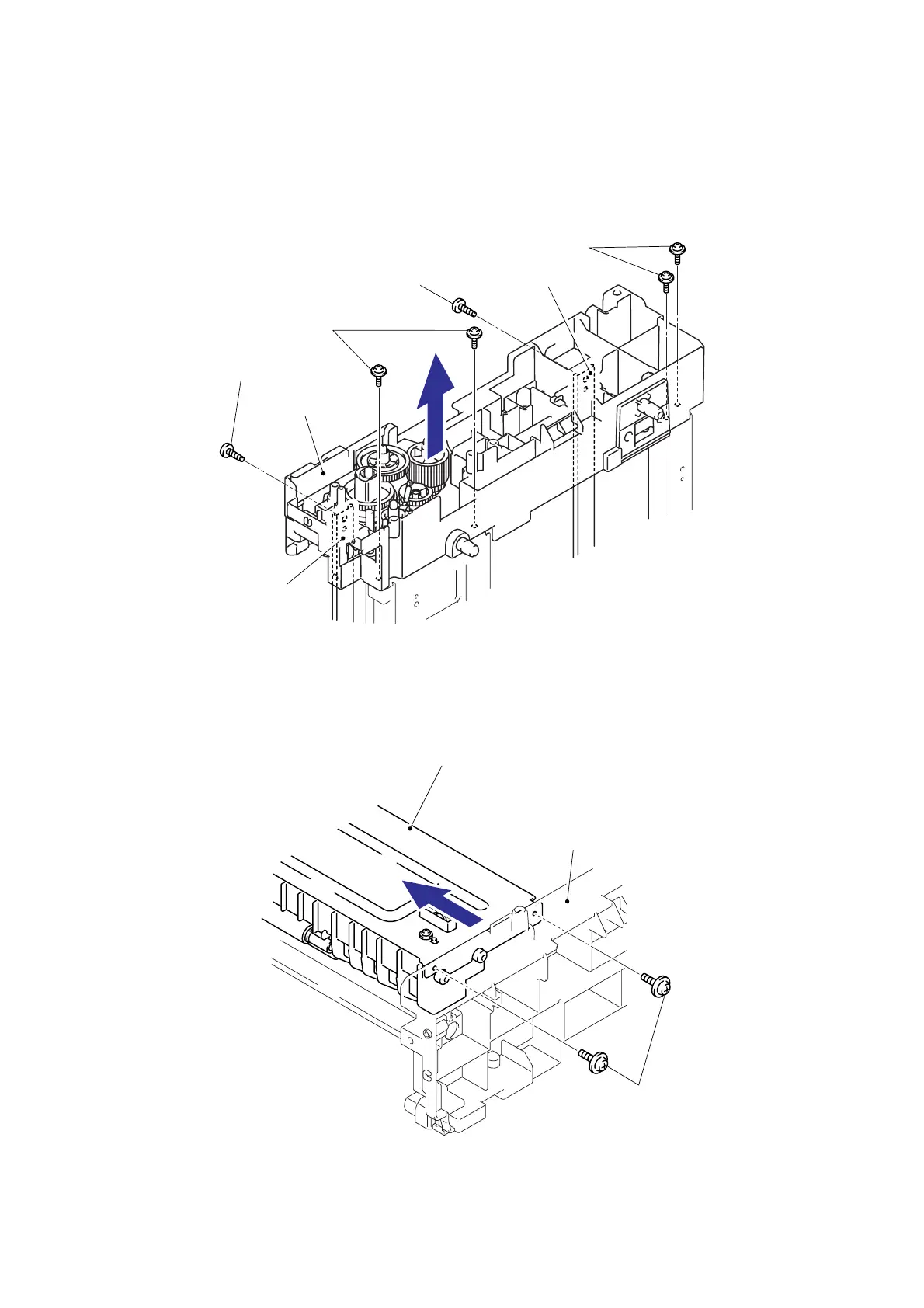

(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the four cup S M3x6 Taptite SR screws, and then remove the LT frame L.
Fig. 5-229
(3) Remove the two cup S M3x6 Taptite SR screws, and then remove the LT paper feed frame.
Fig. 5-230
Taptite, cup S M3x6 SR
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, cup S M3x6 SR
Under ba
r
Under ba
r
LT frame L
LT paper feed frame
Taptite, cup S M3x6 SR
LT frame R
