3.2 MECHANICAL COMPONENTS

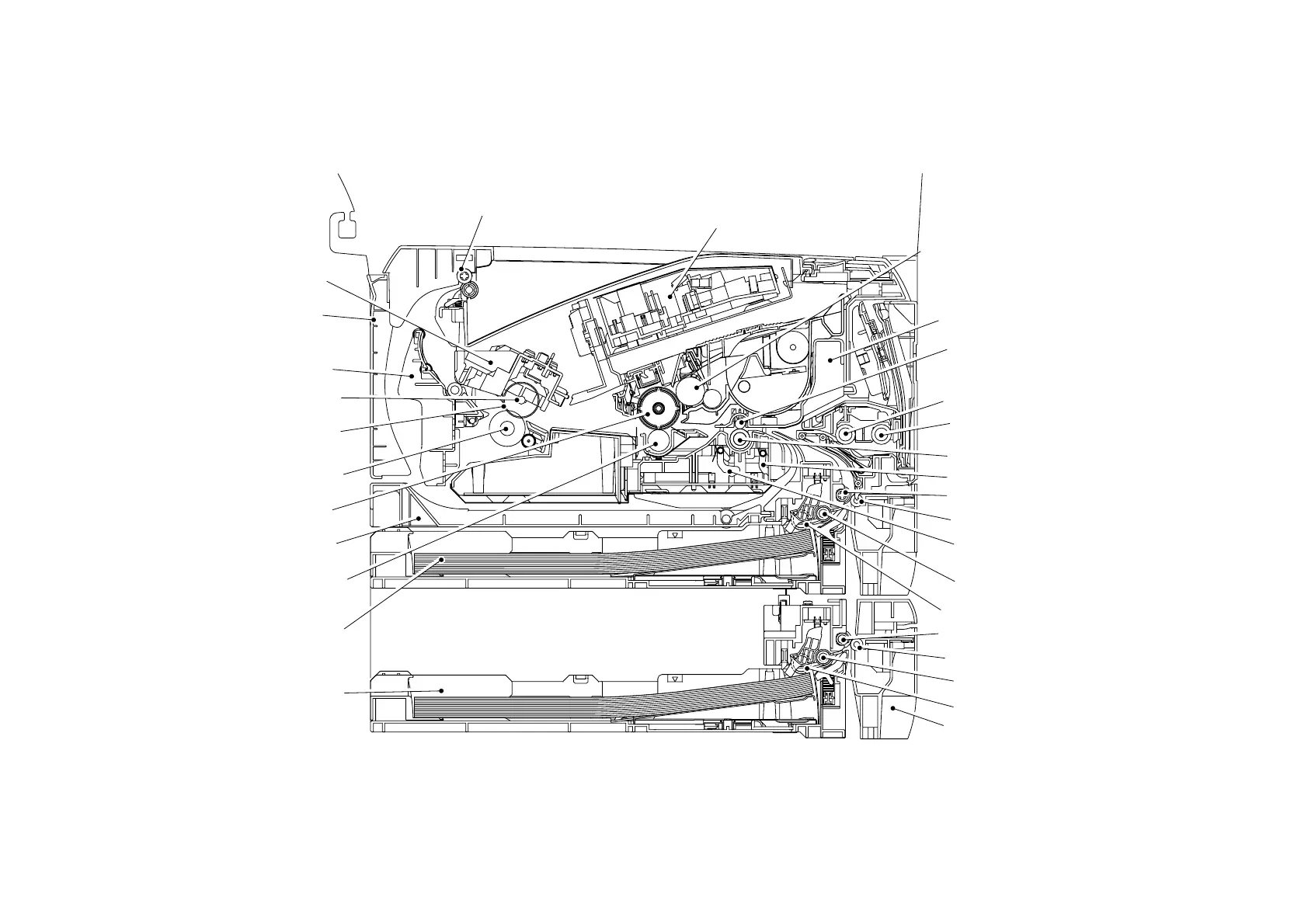

Fig. 3-2
Laser unit
Eject roller ASSY
Fuser unit
Back cover
Outer chute ASSY
Halogen heater
Heat roller
Pressure roller
Exposure drum
Duplex unit
Developer roller
Drum unit
Regist roller
Pinch roller
Transfer roller
Paper tray
Paper tray (LT unit)
LT unit
Separation roller
Feed roller
Separation roller MP
Feed roller
Regist actuator front
Pressure roller
Separation roller
Feed roller
Feed roller TR
Regist actuator rear
Feed roller TR
Pressure roller
