Brother DCP-8065DN - SB Chute ASSY (for the Models with the DX Only SX Chute (for the Models with out the DX Only)

Confidential
5-38

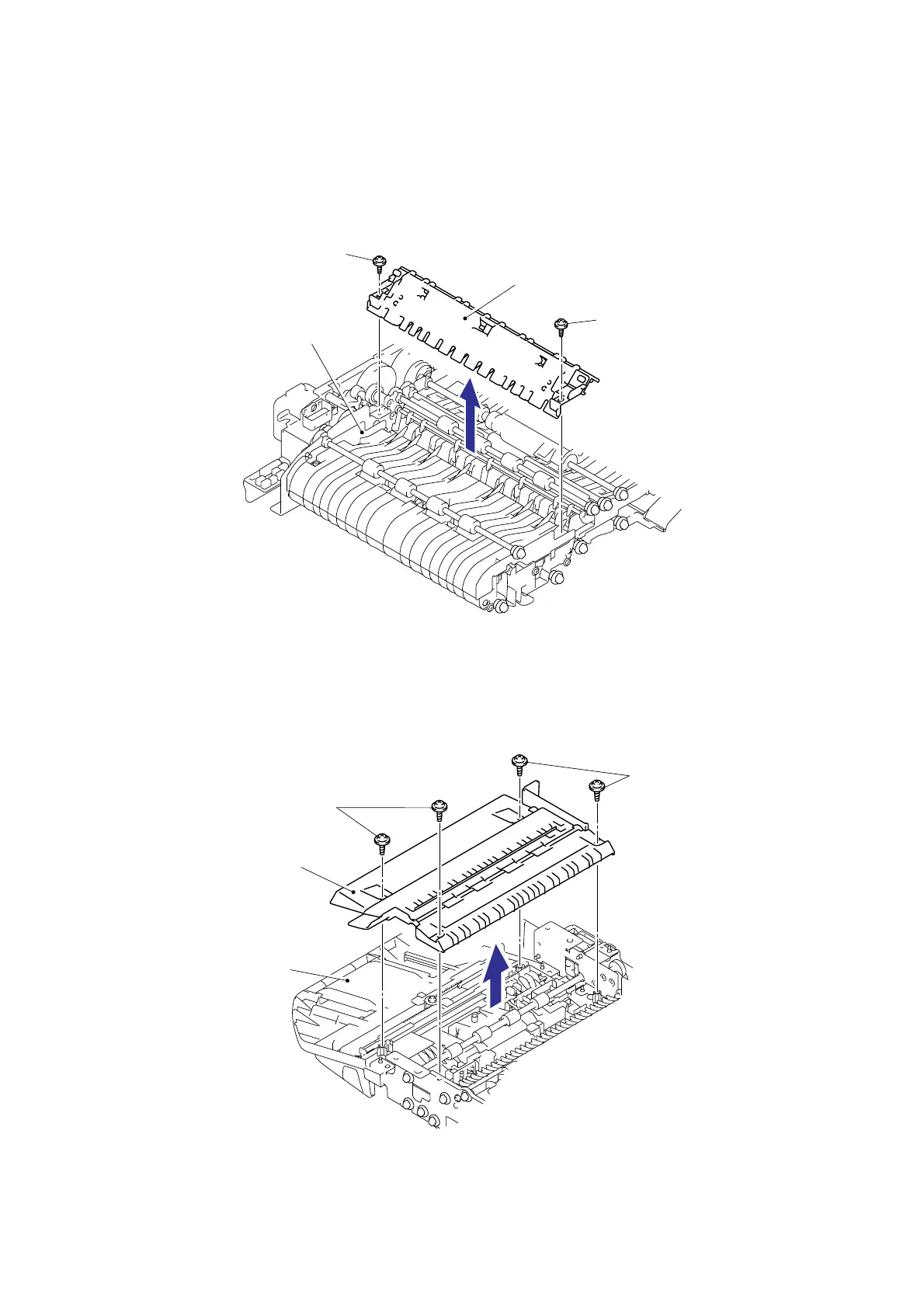

5.1.17 SB Chute ASSY (For the models with the DX only) / SX Chute
(For the models with out the DX only)
(1) Remove the two cup S M3x8 Taptite screws.
(2) Remove the SB chute ASSY or SX chute from the ADF chute ASSY.
Fig. 5-31
5.1.18 Exit Chute Cover ASSY
(1) Turn the ADF chute ASSY upside down and remove the four cup B M3x10 Taptite screws.
(2) Remove the Exit chute cover ASSY from the ADF chute ASSY.
Fig. 5-32
SB chute ASSY
/
SX chute
Taptite, cup B M3x8
Taptite, cup B M3x8
ADF chute ASSY
Taptite, cup B M3x10
Taptite, cup B M3x10
Exit chute cover ASSY
ADF chute ASSY
<Front side>
<Front side>
