Brother DCP-8065DN - PE Actuator;Edge Actuator;Edge Actuator Spring

Confidential
5-121
5.1.95 PE Actuator/Edge Actuator/Edge Actuator Spring

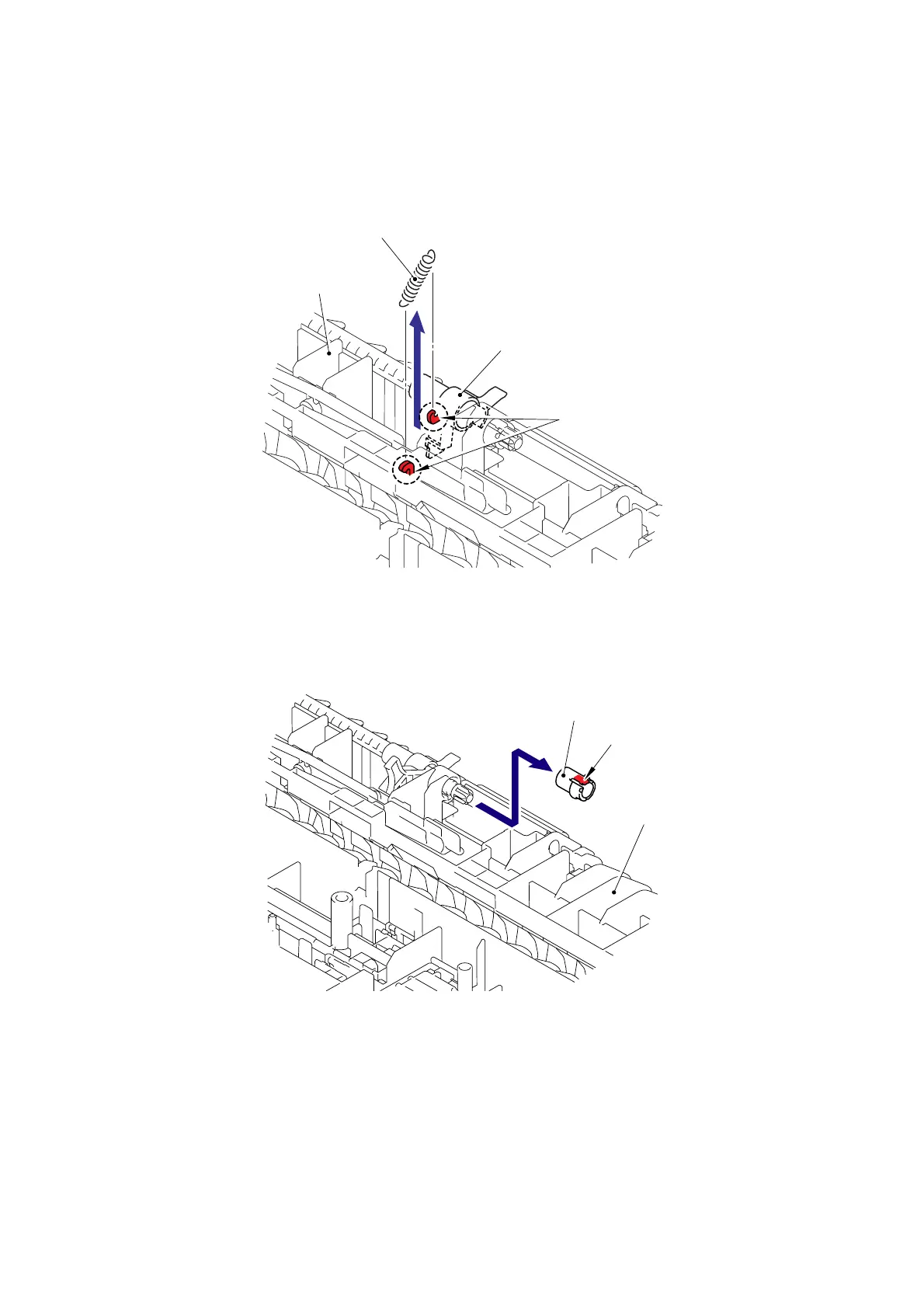

(1) Remove the Edge actuator spring.
Fig. 5-191
(2) Release the hook and remove the Separation R shaft bearing.
Fig. 5-192
Paper feed frame
Edge actuator spring
Edge actuato
r
Hooks
Paper feed frame
Separation R shaft bearing
Hoo
k
