5.1.62 Fuser Unit

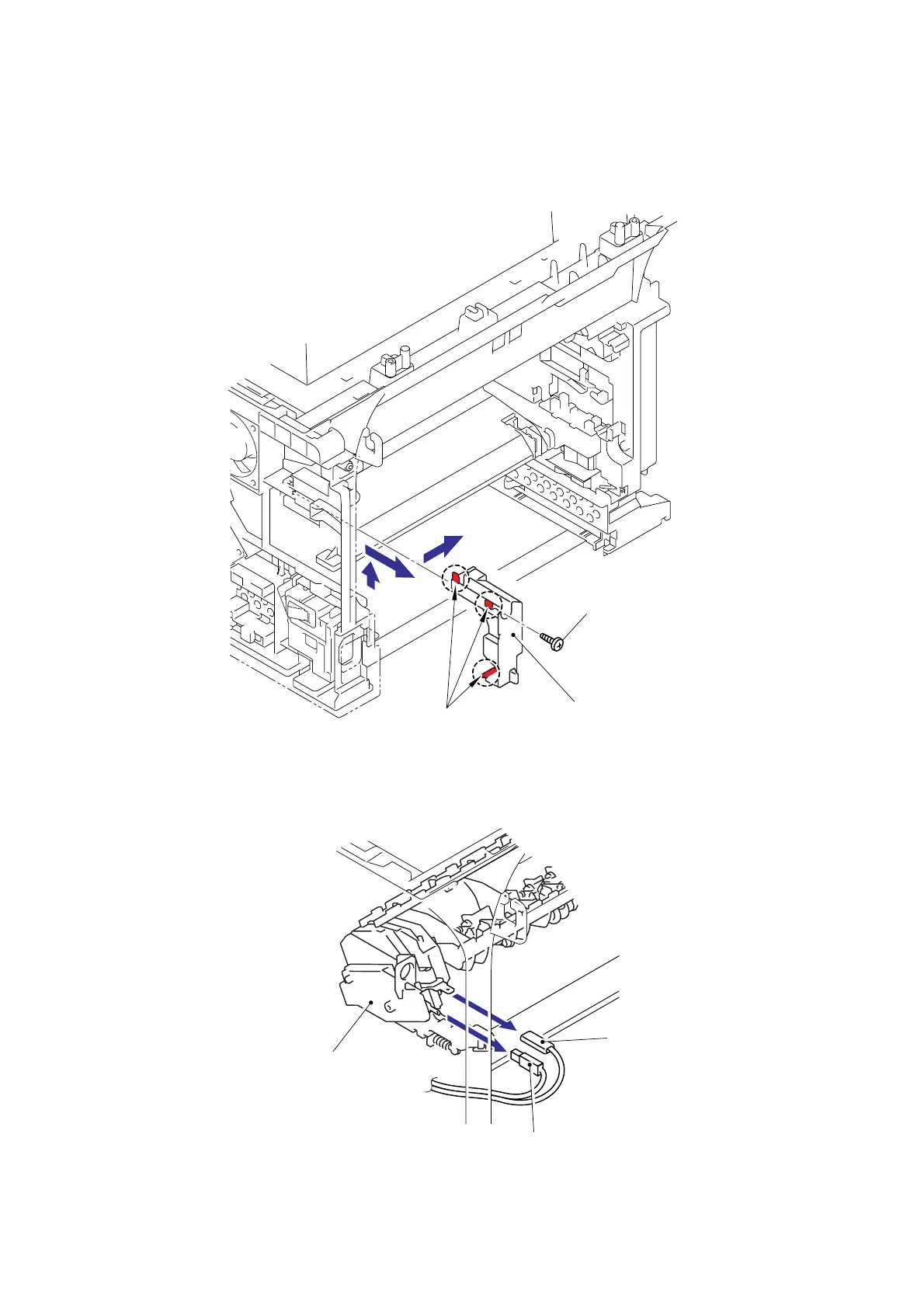

(1) Remove the bind B M4x16 Taptite screw. Release the Hooks in the order of the arrows 1a,
1b and 1c, and remove the FU harness cover 1.
Fig. 5-109
(2) Remove the Heater terminal L and Heater terminal S from the Fuser unit while holding the
Fuser unit.
Fig. 5-110
FU harness cover 1
Hooks
Taptite, bind B M4x16
Heater terminal L
Heater terminal S
Fuser unit
1b
1a
1c
<Back side>
