Brother DCP-8065DN - MP Tray Cover Assy;Process Cover ASSY

Confidential
5-82

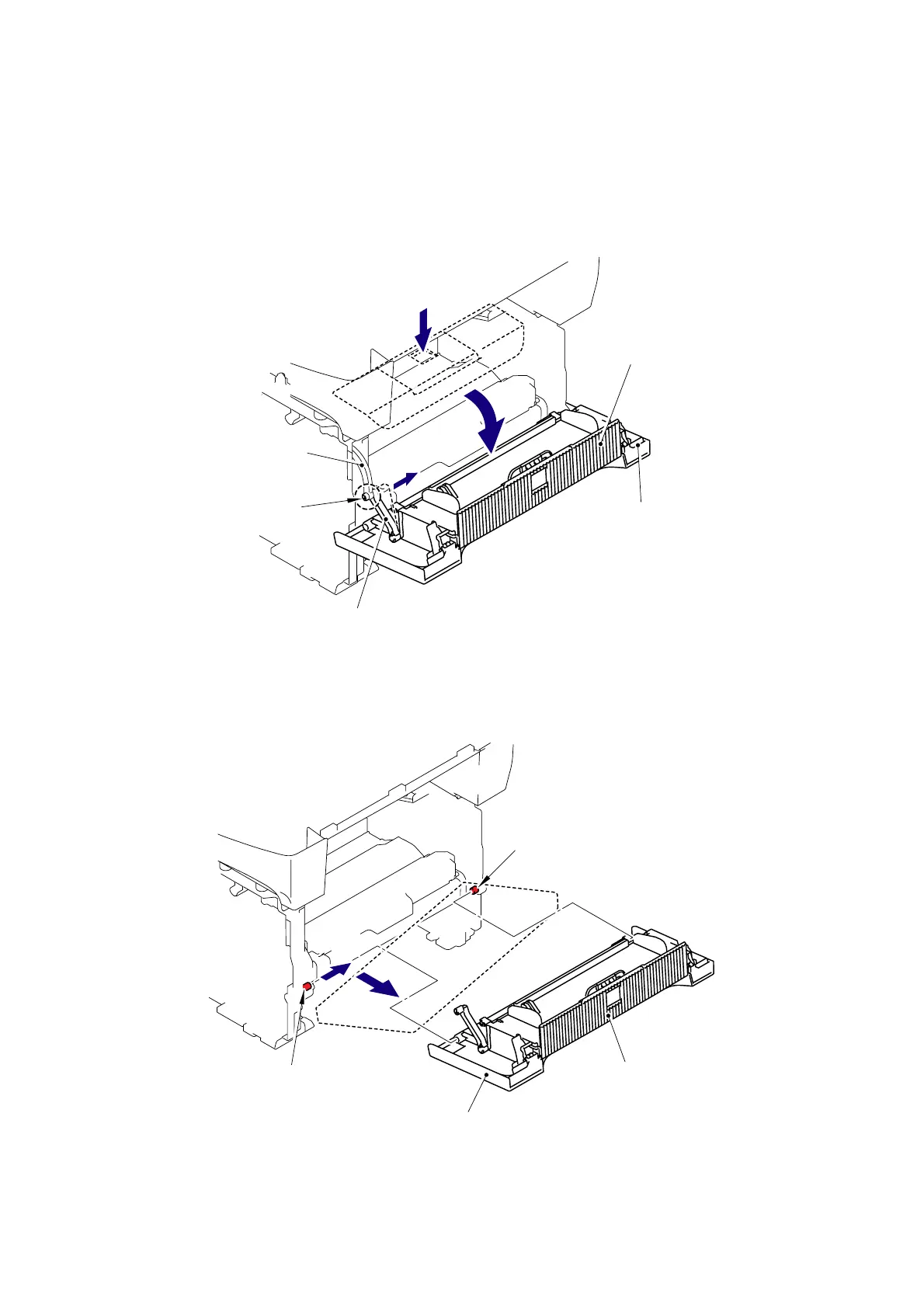

5.1.64 MP Tray Cover ASSY/Process Cover ASSY
(1) Push the cover release lever.
(2) Open the Process cover ASSY.
(3) Release the Hook to remove the Process cover stopper.
Fig. 5-115
(4) Push the Process cover ASSY to the direction of the arrow 4a to release the Boss, and
remove the Process cover ASSY.
Fig. 5-116
Process cover ASSY
MP tray cover ASSY
Process cover ASSY
MP tray cover ASSY
Process cover stoppe
r
Drive release lin
k
Hoo
k
1
2
3
4b
Boss
Boss
4a
