5.1.40 Flap B

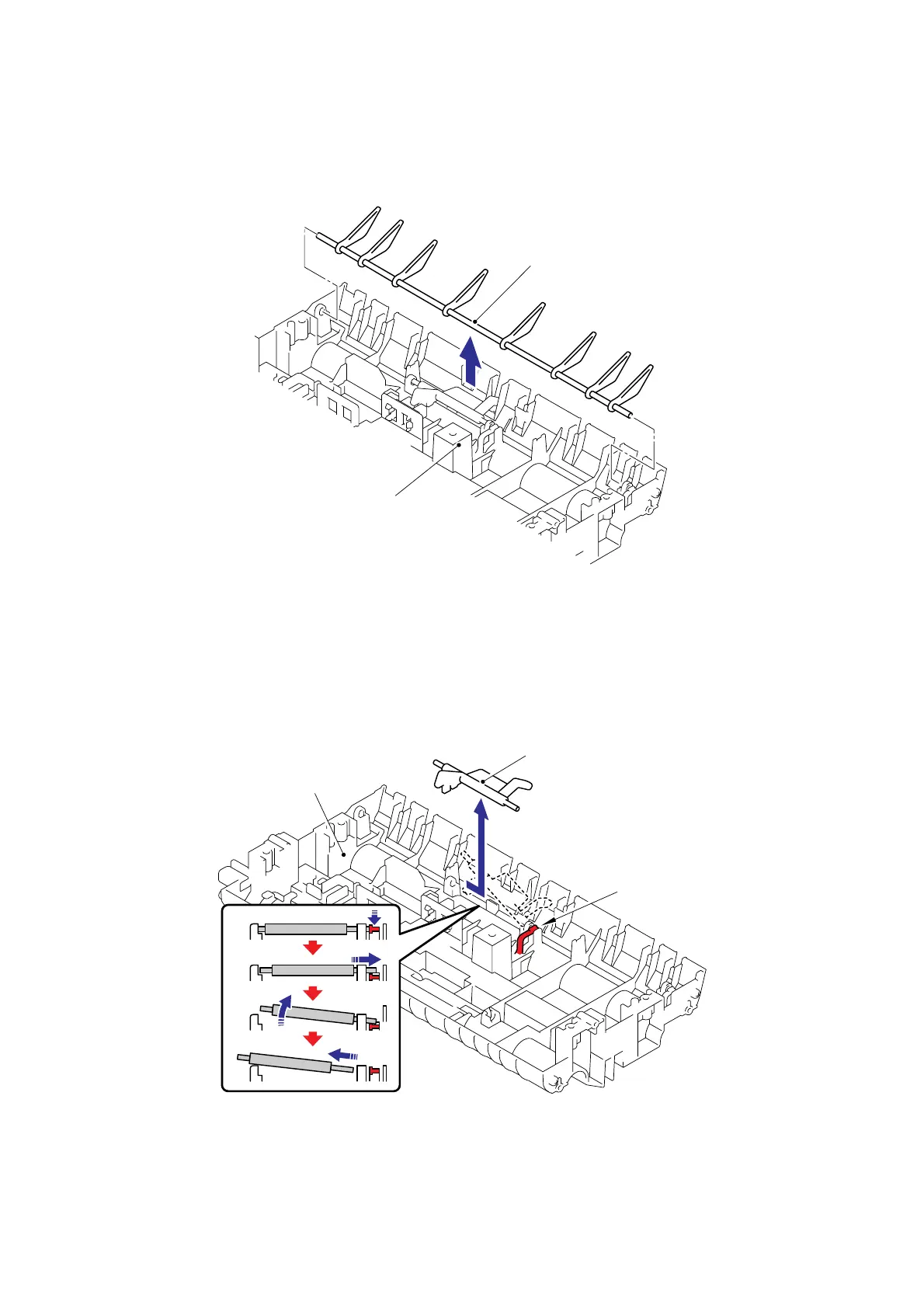

(1) Remove the Flap B from the Lower main chute ALFB.
Fig. 5-71
5.1.41 Actuator SB/Photo Interrupter (For the models with the DX only)
(1) Push down the Stopper, slide the Actuator SB to the stopper side and pull up the Actuator
SB to remove.
Fig. 5-72
Lower main chute ALFB
Flap B
Lower main chute ALFB
Actuator SB
Stoppe
r
