Brother DCP-8065DN

Confidential
5-101
5.1.81 Joint Cover ASSY
(1) Disconnect the connector of the Battery.
(2) Remove the Battery. (for the model supporting the Battery only)
(3) Disconnect the connector of the Battery harness, and then remove the Battery harness from
the Main PCB.

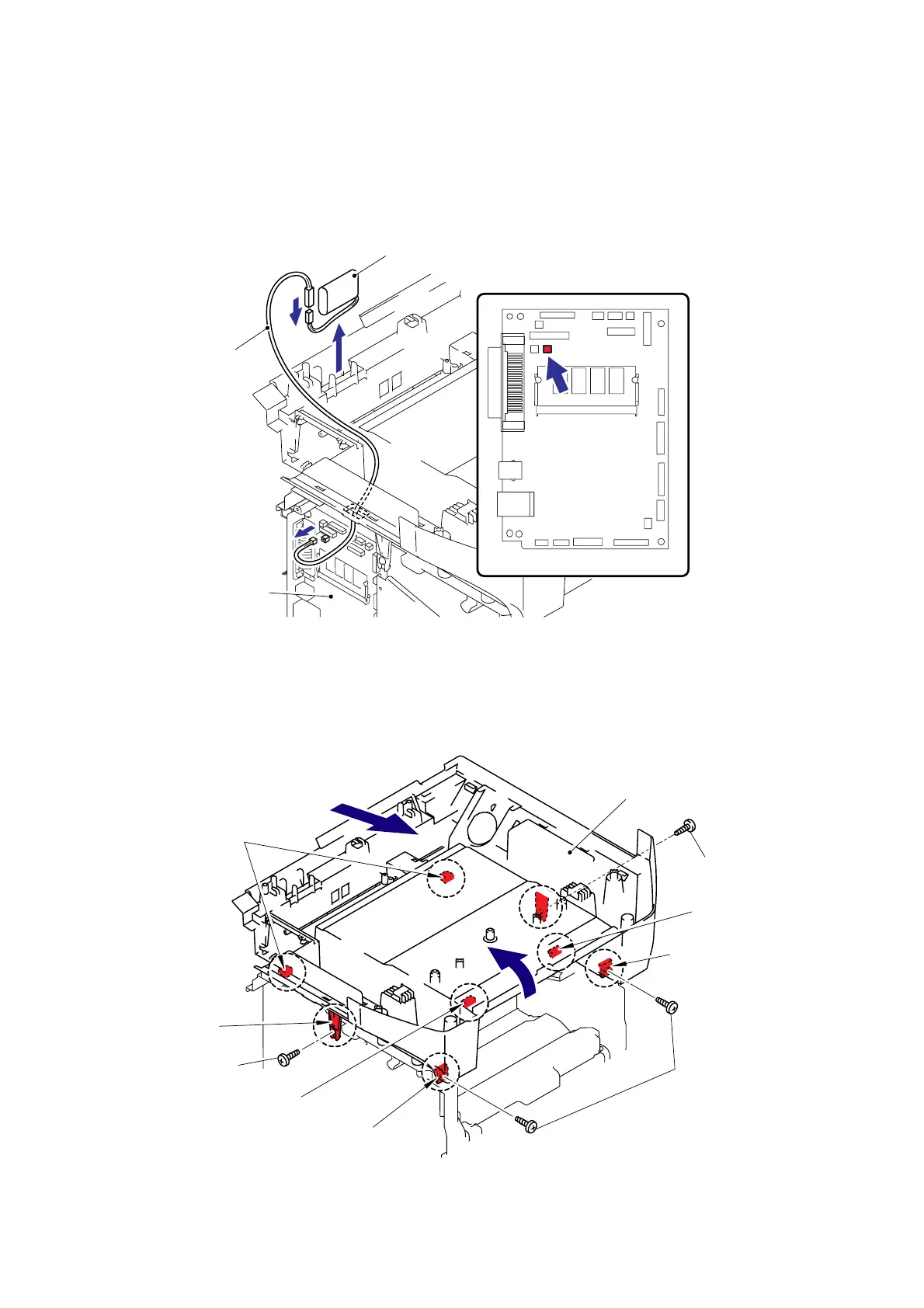

Fig. 5-152
(4) Remove the four bind B M4x12 Taptite screws from the Joint cover.
(5) Release all Hooks of the Joint cover and lift up the front side of the Joint cover.
(6) Pull out the Joint cover to the front side.
Fig. 5-153
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, bind B M4x12
Hoo
k
Hoo
k
Hoo
k
Hoo
k
Hooks
Joint cove
r
Batter
y
Battery harness
Main PCB
1
3
Hoo
k
5
6
2
<Front side>
<Left side>
Main PCB
