Brother DCP-8065DN - Actuator R;Photo Interrupter

Confidential
5-58
5.1.39 Actuator R/Photo Interrupter

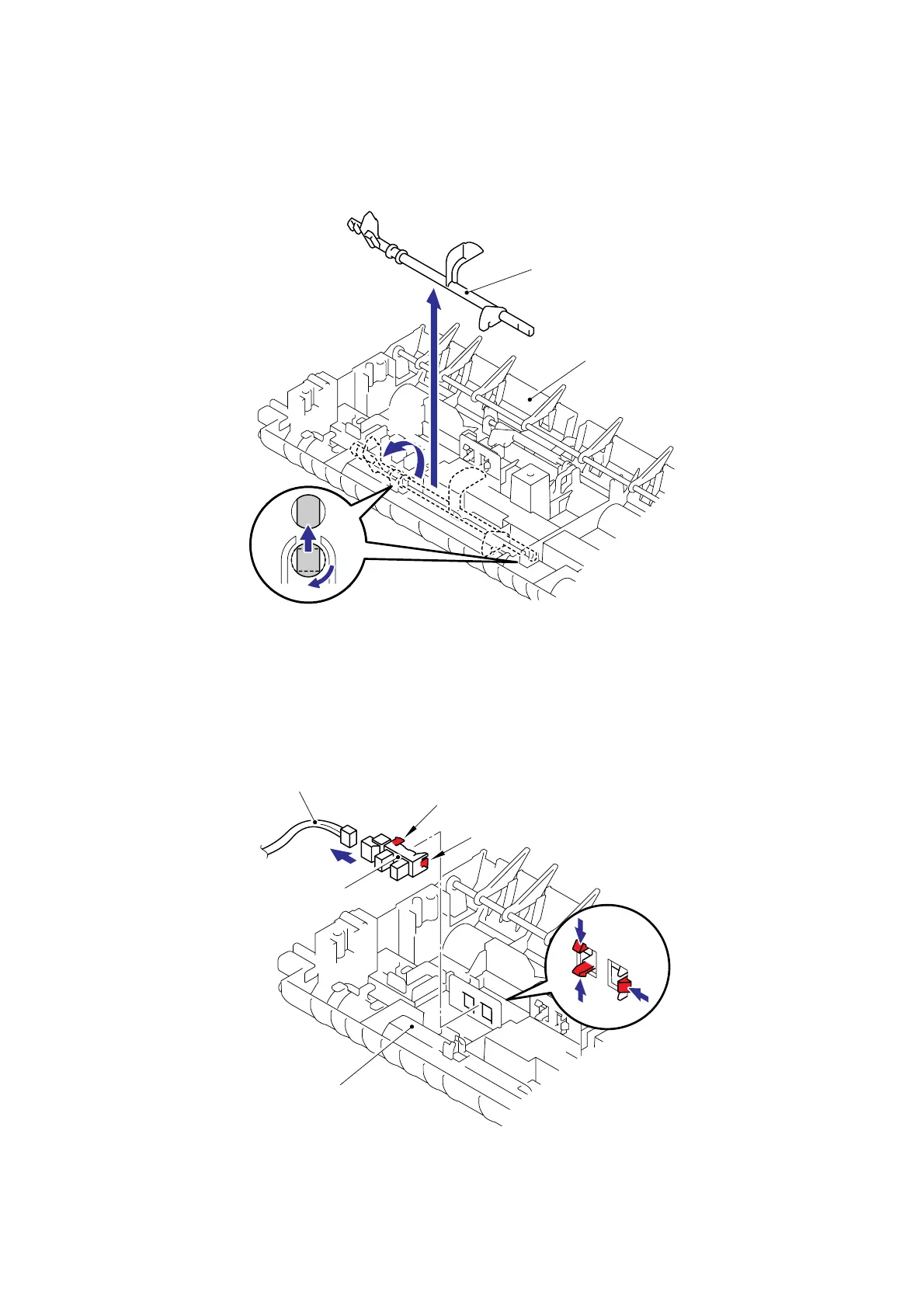

(1) Turn the Actuator R to the direction of the arrow 1a and pull it out to the direction of the
arrow 1b.
Fig. 5-69
(2) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Lower
main chute ALFB.
(3) Disconnect the Connector from the Photo interrupter.
Fig. 5-70
Actuator R
Lower main chute ALFB
Photo interrupte
r
Connecto
r
Lower main chute ALFB
Hoo
k
Hoo
k
1b
1a
