(3) Remove the three cup B M3x10 Taptite screws.
(4) Remove the Front frame ALFB.

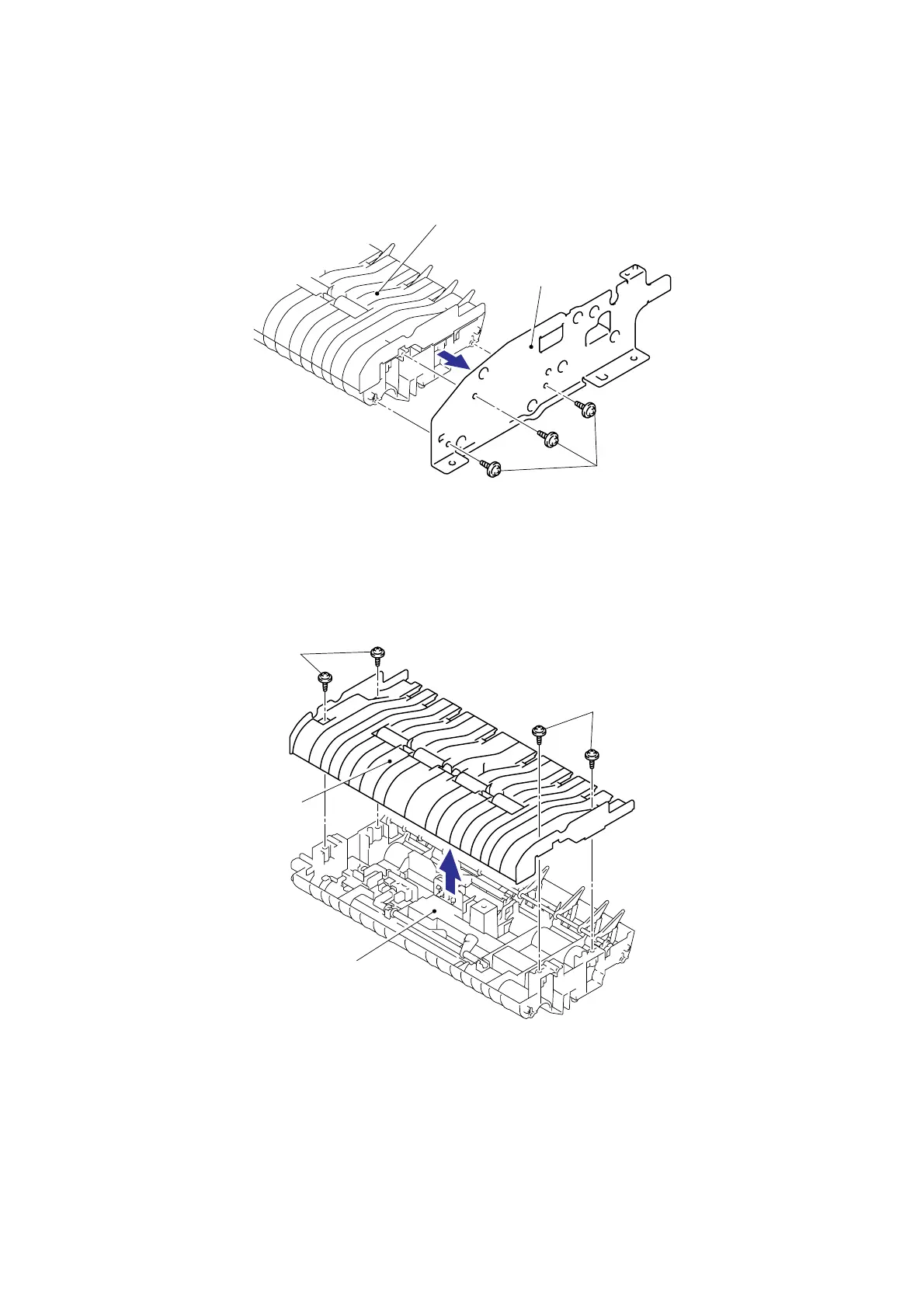

Fig. 5-67
(5) Remove the four cup B M3x10 Taptite screws.
(6) Remove the Upper main chute ASSY from the Lower main chute ASSY.
Fig. 5-68
Front frame ALFB
Taptite, cup B M3x10
Main chute ASSY
Taptite, cup B M3x10
Taptite, cup B M3x10
Lower main chute ASSY
Upper main chute ASSY
<Front side>
