(2) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Lower
main chute ALFB.
(3) Disconnect the Connector from the Photo interrupter.

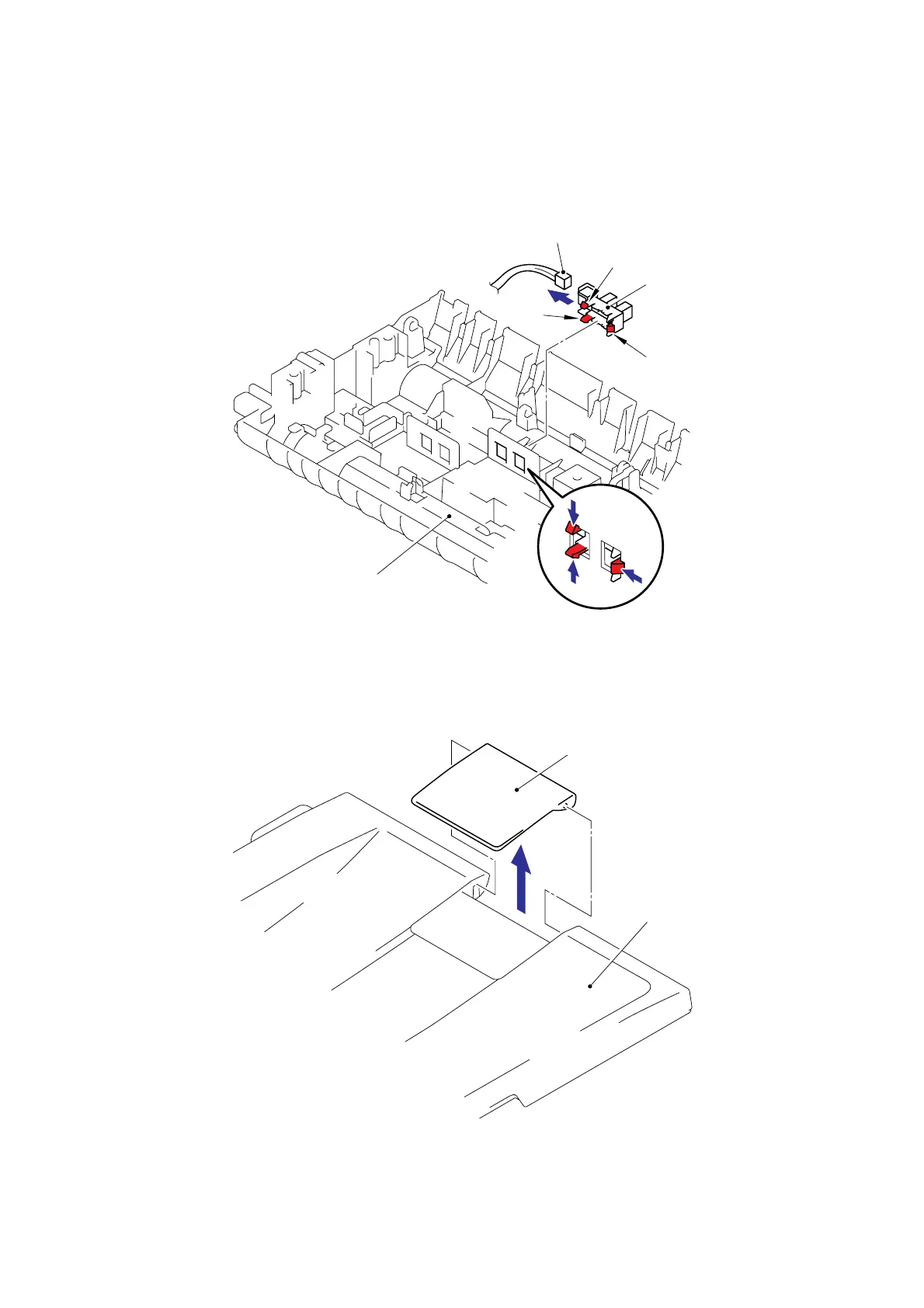

Fig. 5-73
5.1.42 Document Ejection Tray
(1) Remove the ADF document output support flap from the Document cover LGL ALFB.
Fig. 5-74
Lower main chute ALFB
Photo interrupte
r
Connecto
r
Document cover LGL ALFB
ADF document output support flap
Hoo
k
Hoo
k
<Front side>
Hoo
k
