5.1.91 MP Unit

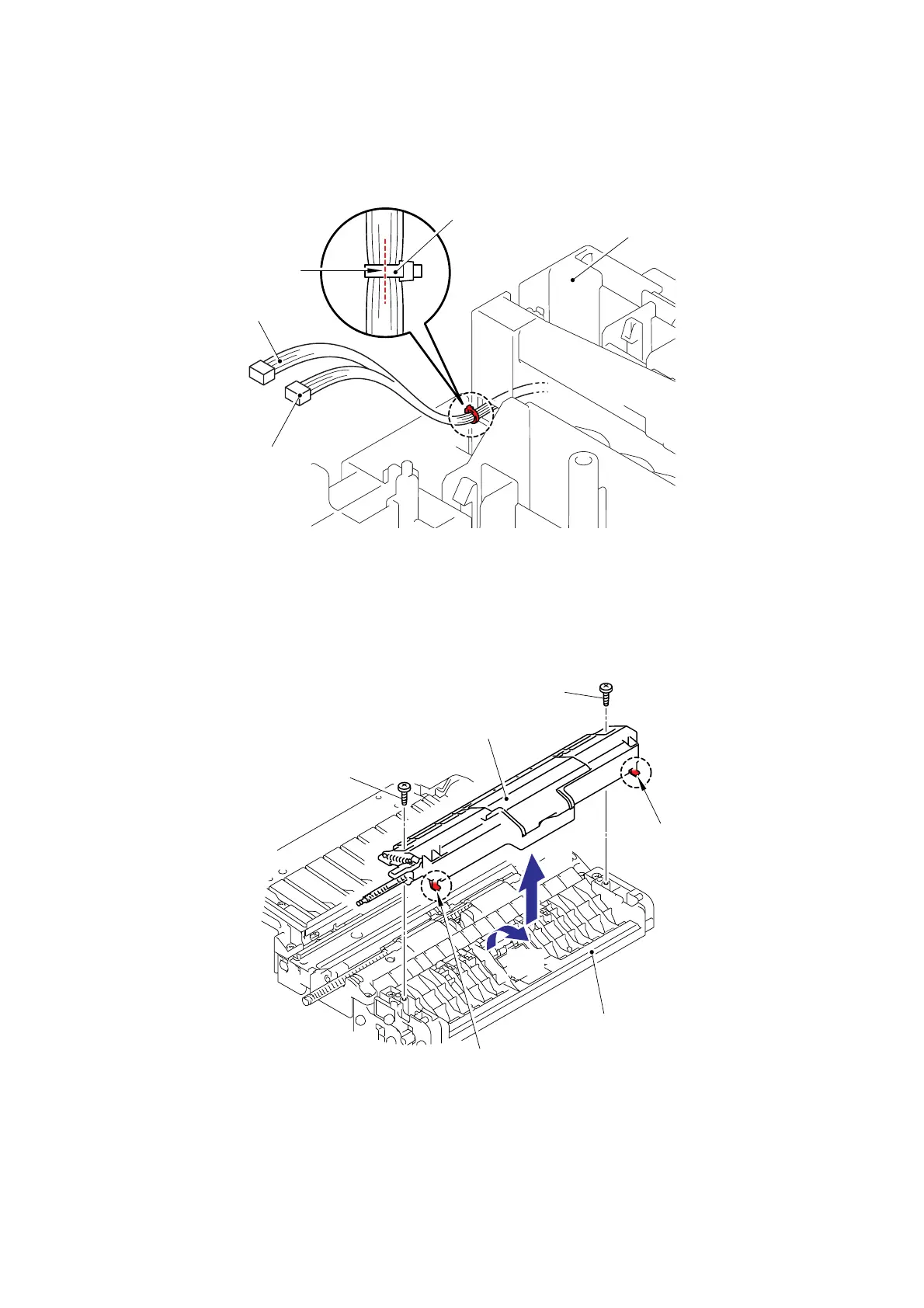

(1) Cut the Binder bundling the harnesses with nippers or the like.
Fig. 5-173
(2) Remove the two bind B M3x8 Taptite screws
(3) Lift up the rear side of the MP feed frame and pull up the MP feed frame to remove.
Fig. 5-174
Paper feed
f
rame
Taptite,
b
ind B M3x8
Taptite,
b
ind B M3x8
MP feed frame
Hoo
k
Hoo
k
3a
3b
Paper feed frame
Binde
r
Cut
MP PE sensor connector
PE EG sensor connector
<Back side>
<Front side>
