Brother DCP-8065DN

Confidential
5-74
5.1.58 LCD Cover/Backlight Module/LCD

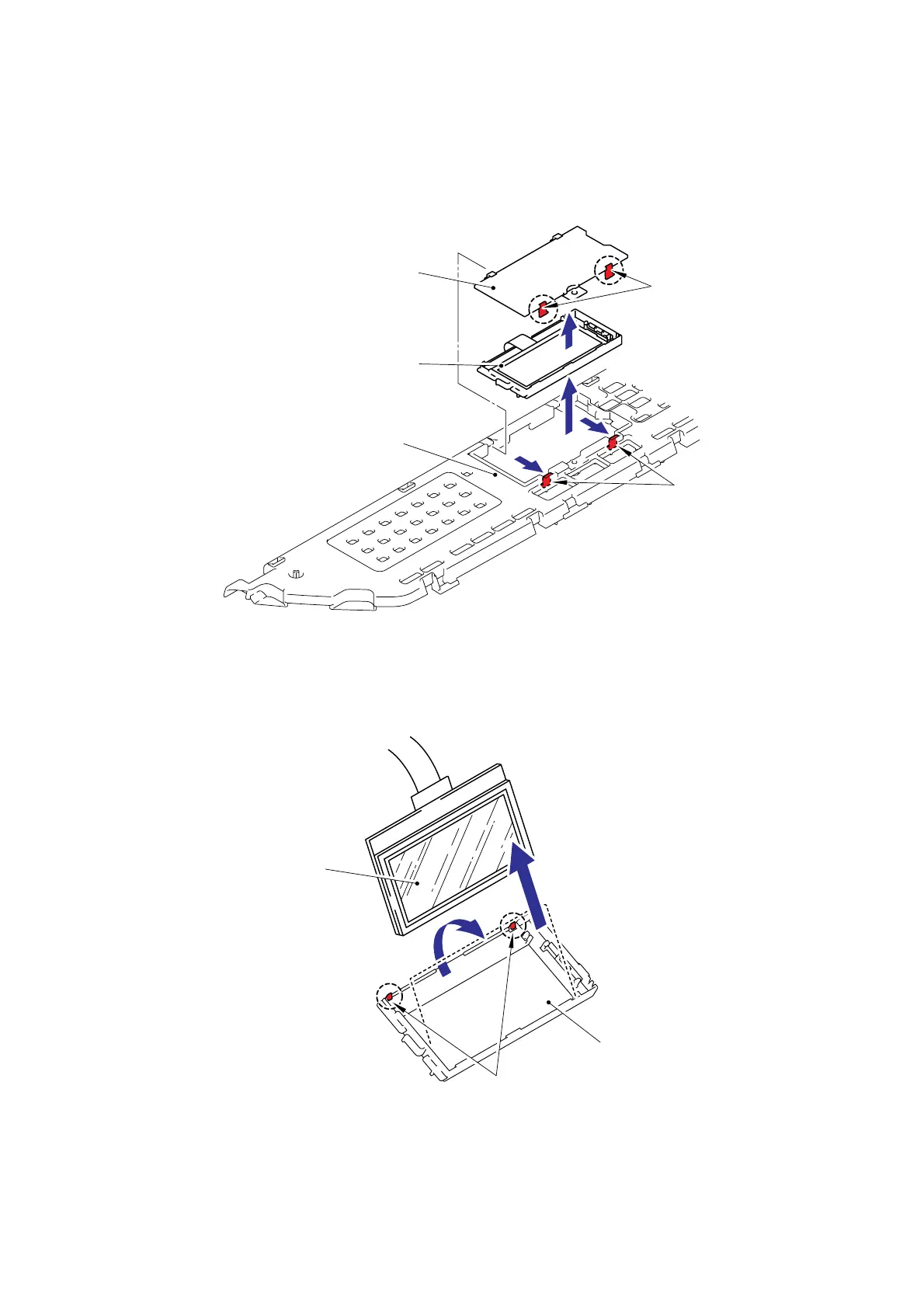

(1) Release the Hooks on the Panel cover to the direction of the arrow and remove the LCD
cover and LCD ASSY from the Panel cover.
Fig. 5-99
(2) Release the two Hooks, lift up the LCD to the direction of the arrow 2a and remove the LCD.
Fig. 5-100
Hooks
Panel cove
r
LCD cove
r
LCD ASSY
Backlight module
LCD
Hooks
2a
2b
Hooks
