Brother DCP-8065DN

Confidential
5-120

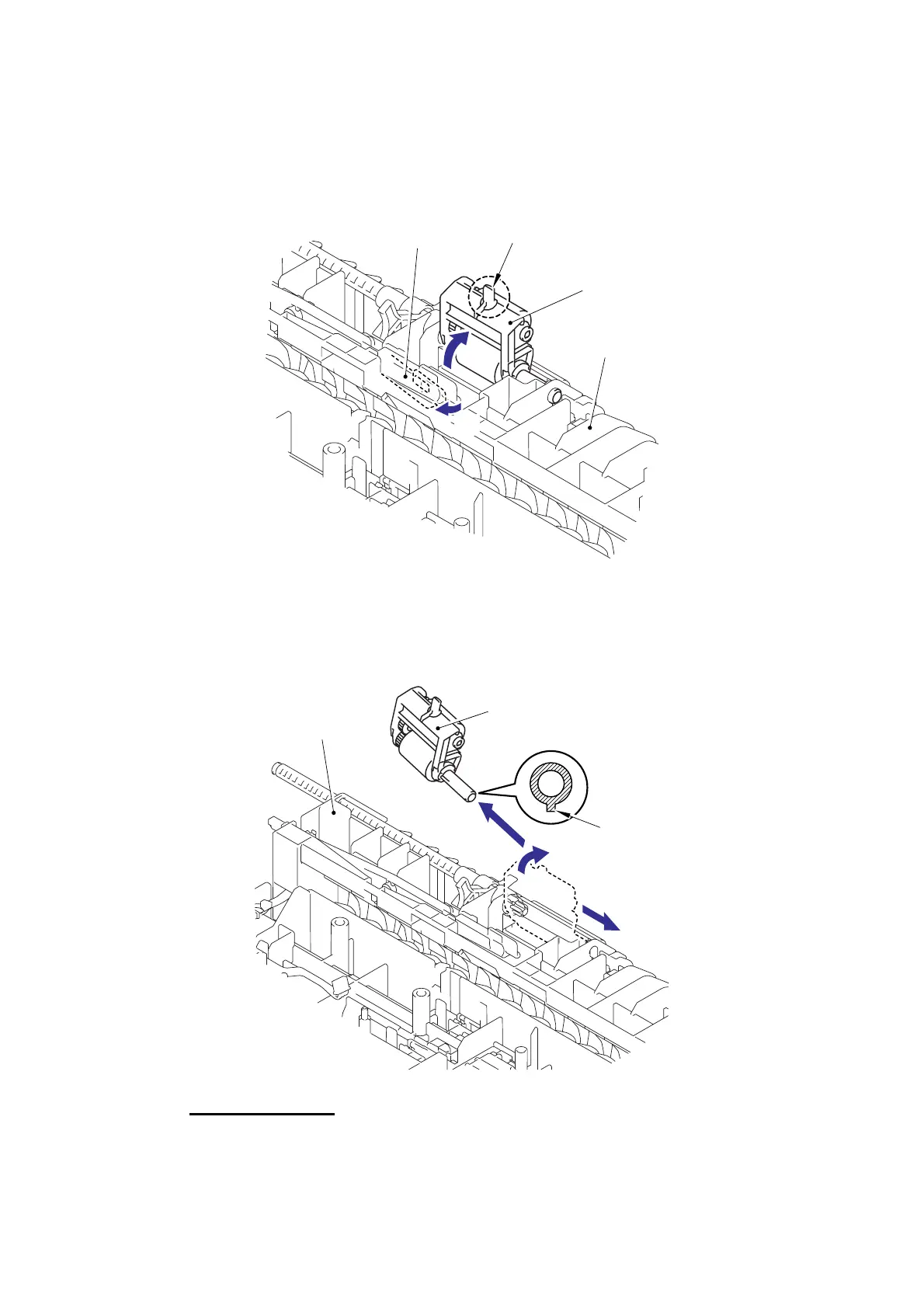

5.1.94 Roller Holder ASSY
(1) Push the Lift arm to the direction of the arrow 1a and pull out the pin of the Roller holder
ASSY. Then, turn the Roller holder ASSY to the direction of the arrow 1b.
Fig. 5-189
(2) Slide the Roller holder ASSY to the direction of the arrow 2a. Then, lift up the gear side of
the Roller holder ASSY to the direction of the arrow 2b and pull it out to the direction of the
arrow 2c to remove.
Fig. 5-190

Assembling Notes
When assembling the roller holder ASSY, align the section “A” on the shaft of
the roller holder ASSY with the hole on the paper feed frame.
Paper feed frame
Roller holder ASSY
Pin
Lift ar
m
Roller holder ASSY
1a
1b
2b
2a
2c
Paper feed frame
“A”
