Brother DCP-8065DN

Confidential
5-71

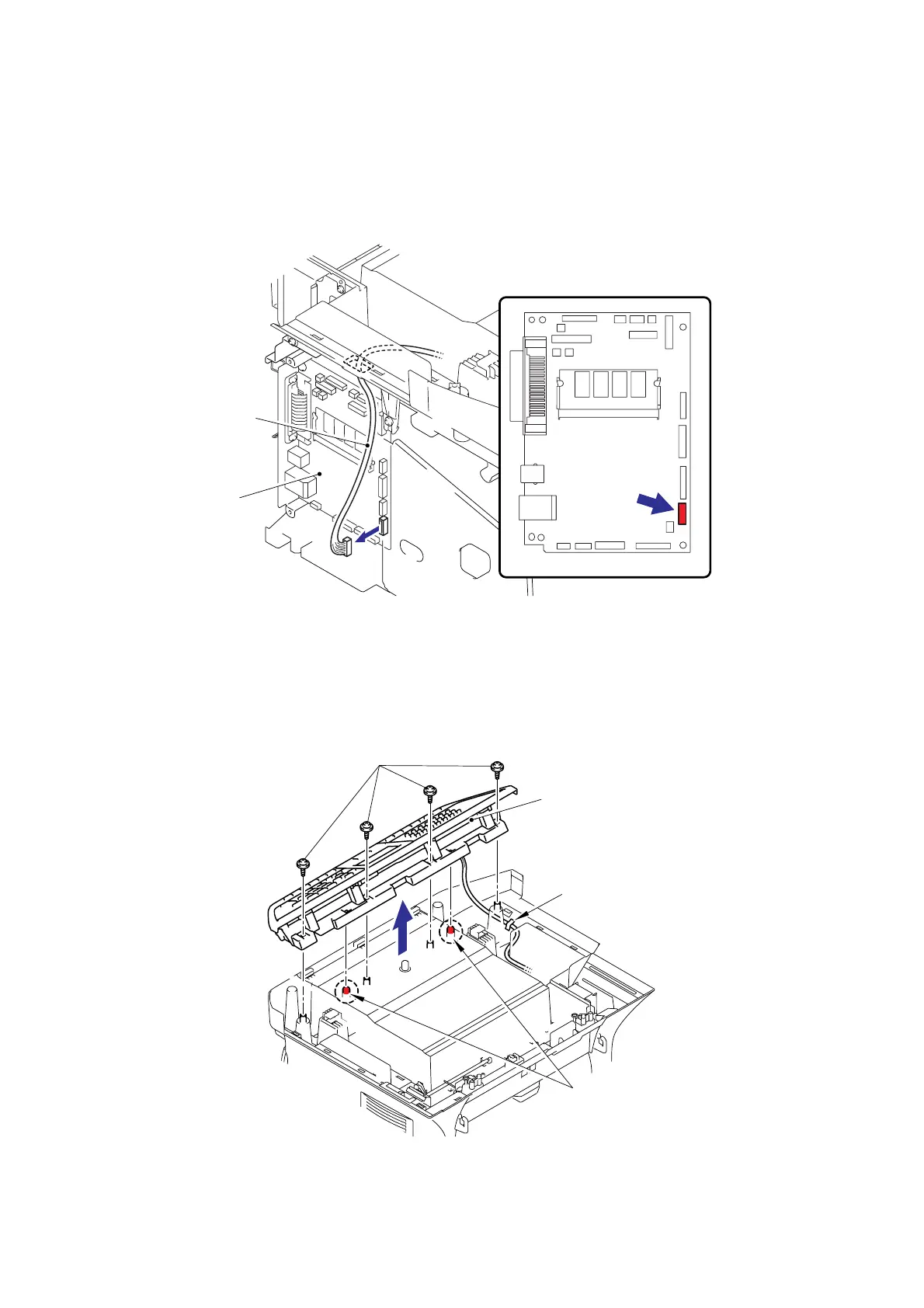

5.1.55 Panel Unit
(1) Disconnect the connector of the Panel PCB harness from the Main PCB.
Fig. 5-93
(2) Remove the four cup B M4x12 Taptite screw.
(3) Remove the Tape fixing the wire harness.
(4) Remove the Panel Unit.
Fig. 5-94
Panel PCB harness
Main PCB
Pin
Panel Unit
Taptite, cup B M4x12
Main PCB
<Left side>
<Back side>
Tape
