Brother DCP-8065DN

Confidential
5-64

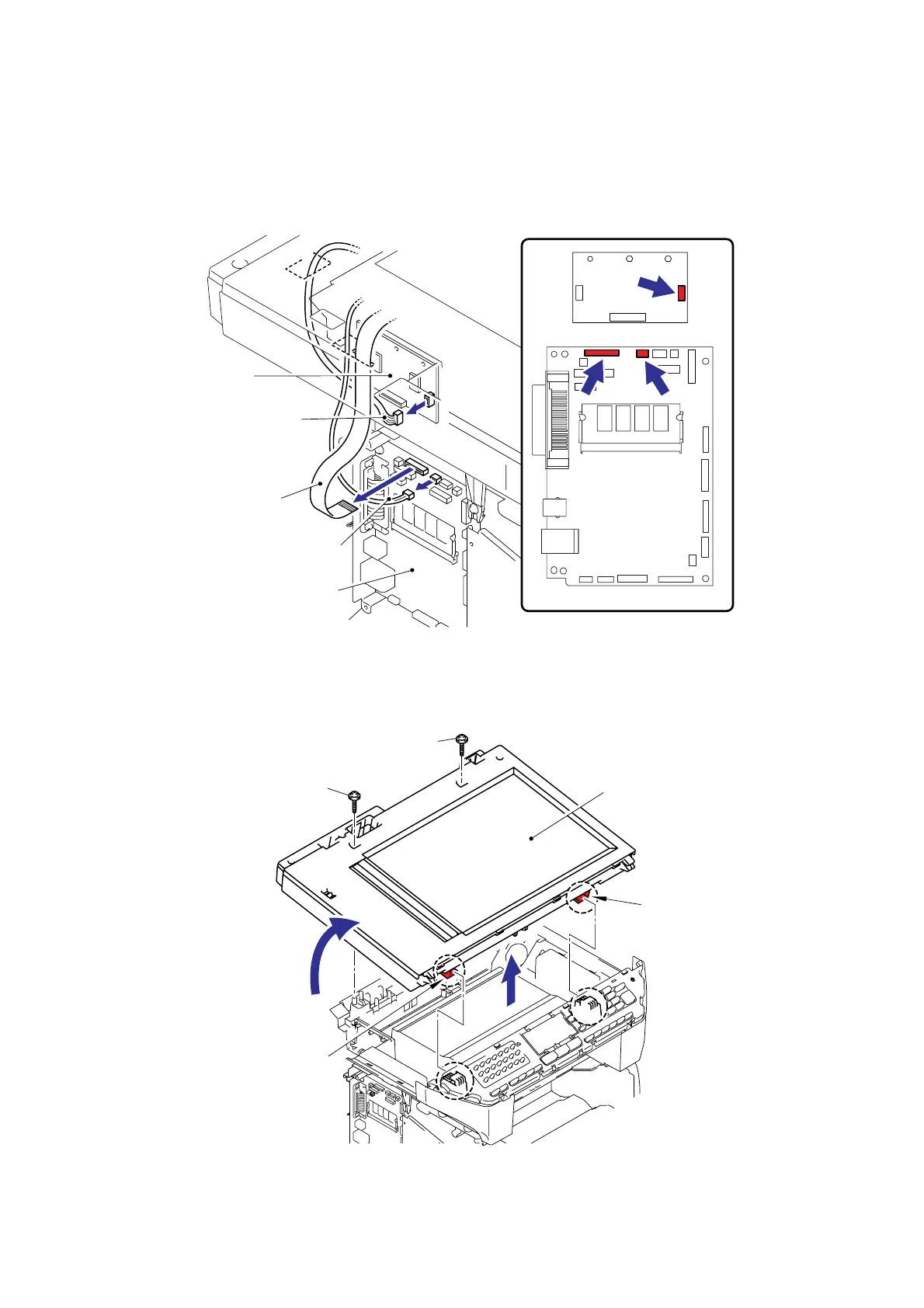

5.1.47 Scanner Unit ASSY
(1) Disconnect the connector of the Scanner motor harness from the Driver PCB.
(2) Disconnect the connector of the Photo interrupter and FFC cable from the Main PCB.
Fig. 5-80
(3) Remove the two cup B M4x20 Taptite screws. Lift up the rear of the Scanner unit FLFB
slightly and remove the Scanner unit FLFB.
Fig. 5-81
Taptite, cup B M4x20
Taptite, cup B M4x20
Driver PCB
Scanner motor harness
FFC cable
Photo interrupte
r
Main PCB
Scanner unit FLFB
Hoo
k
Hoo
k
Main PCB
Driver PCB
3a
3b
