Brother DCP-8065DN

Confidential
5-78

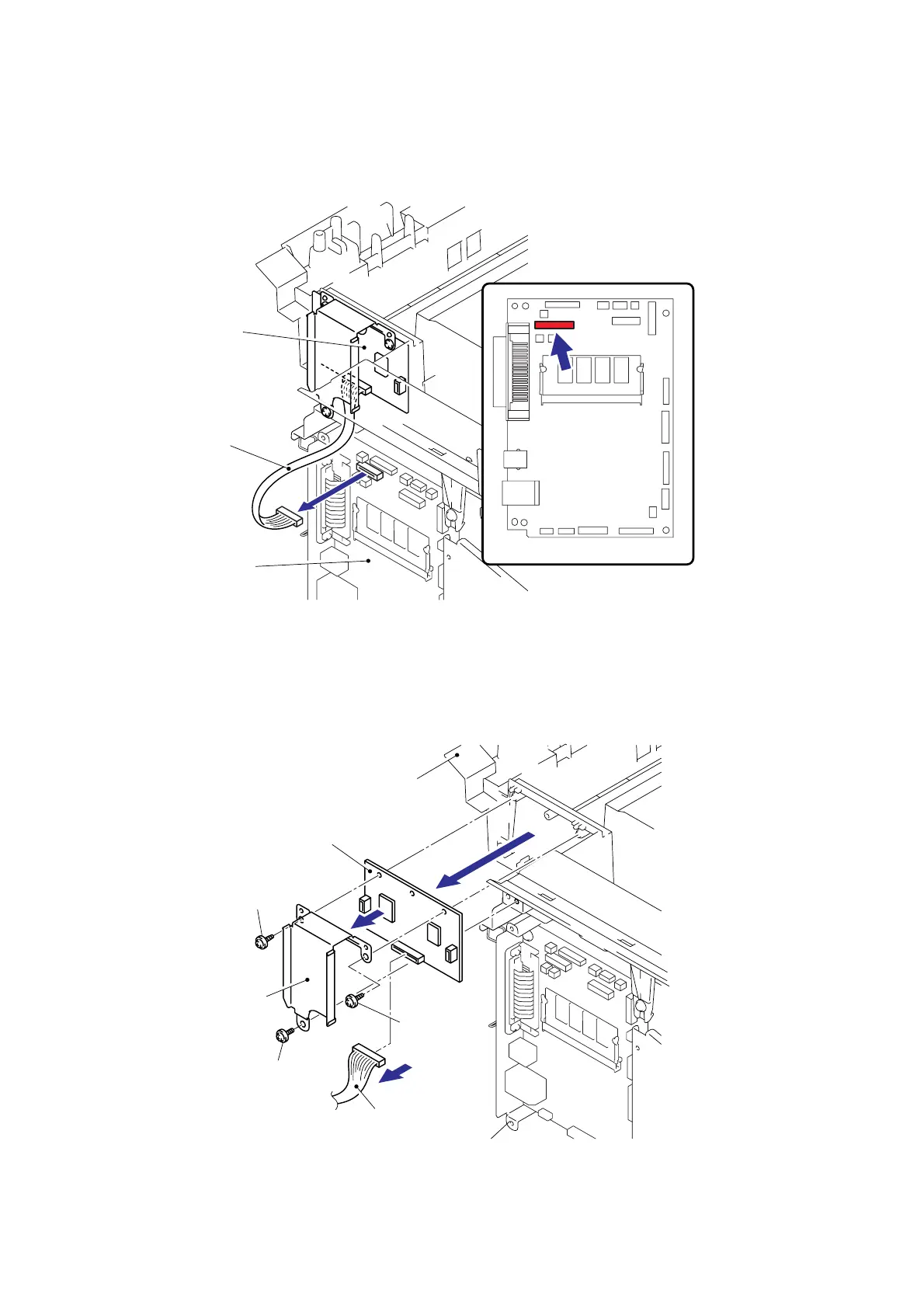

5.1.61 Driver PCB
(1) Disconnect the connector of the Driver harness from the Main PCB.
Fig. 5-107
(2) Remove the cup S M3x6 SR Taptite screw and two cup B M3x8 Taptite screws.
(3) Remove the Driver PCB shield ALFB and Driver PCB from the Joint cover ASSY.
(4) Disconnect the connector of the Driver harness from the Driver PCB.
Fig. 5-108
Driver PCB
Driver harness
Main PCB
Driver PCB
Taptite, cup B M3x8
Taptite, cup B
M3x8
Driver PCB shield ALFB
Taptite, cup S M3x6 SR
Driver harness
Joint cover ASSY
Main PCB
