Brother DCP-8065DN

Confidential
5-62

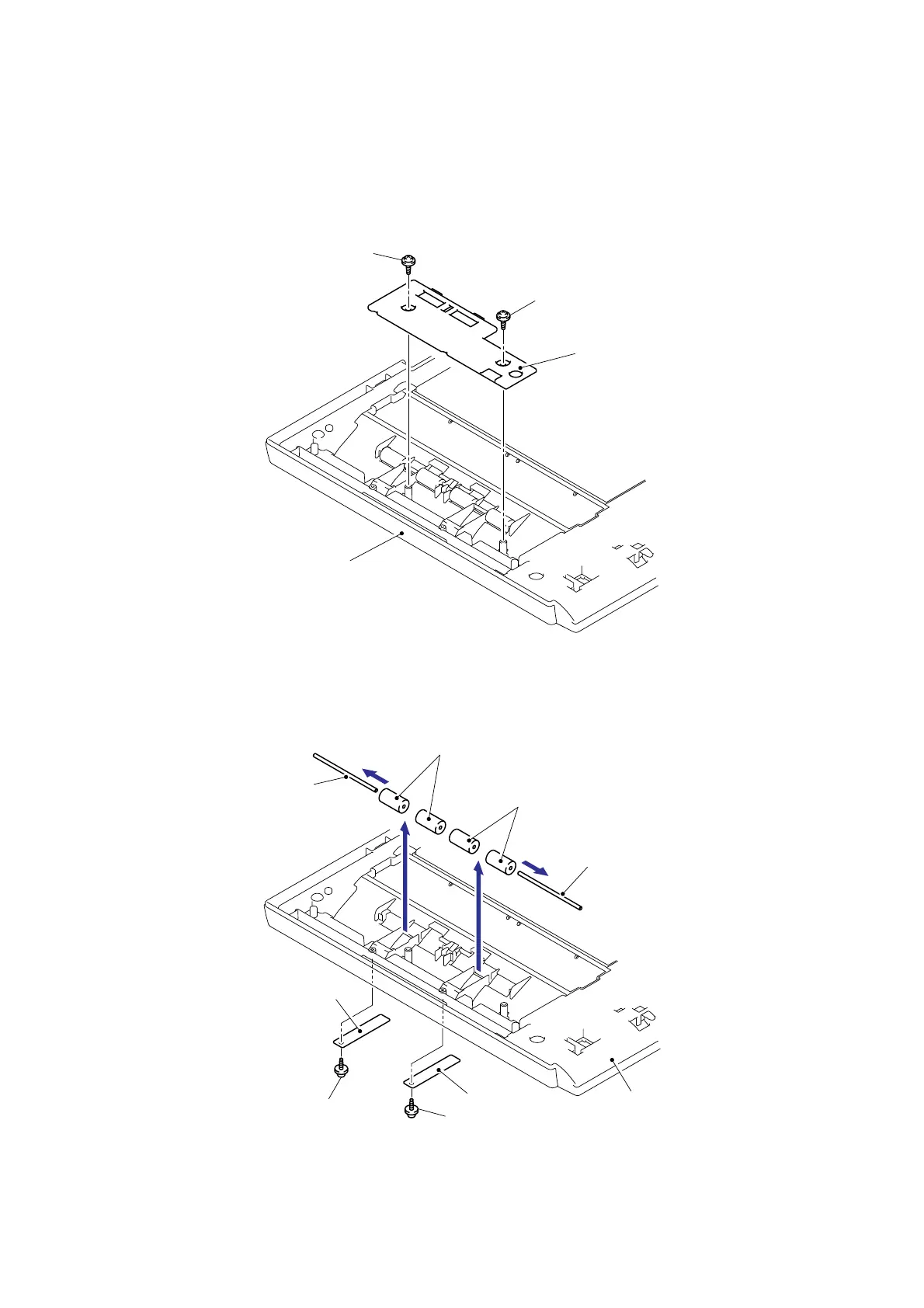

5.1.45 Presser Roller
(1) Turn the Document cover LGL ALFB upside down. Remove the two cup B M3x10 Taptite
screws.
(2) Remove the Rear sensor cover from the Document cover LGL ALFB.
Fig. 5-77
(3) Remove the two cup B M3x10 Taptite screws, and then remove the two LF springs, four
Presser rollers and two Presser roller shafts S.
Fig. 5-78
Rear sensor cove
r
Taptite, cup B M3x10
Taptite, cup B M3x10
Document cover LGL ALFB
Document cover LGL ALFB
Presser rollers
Presser rollers
Taptite, cup B M3x10
Presser roller shafts S
LF spring
LF spring
Taptite, cup B M3x10
Presser roller shafts S
