Brother DCP-8065DN

Confidential
5-92
5.1.69 Relay Front PCB ASSY
(1) Remove the Relay front PCB ASSY.
(2) Disconnect the five connectors from the Relay front PCB ASSY.

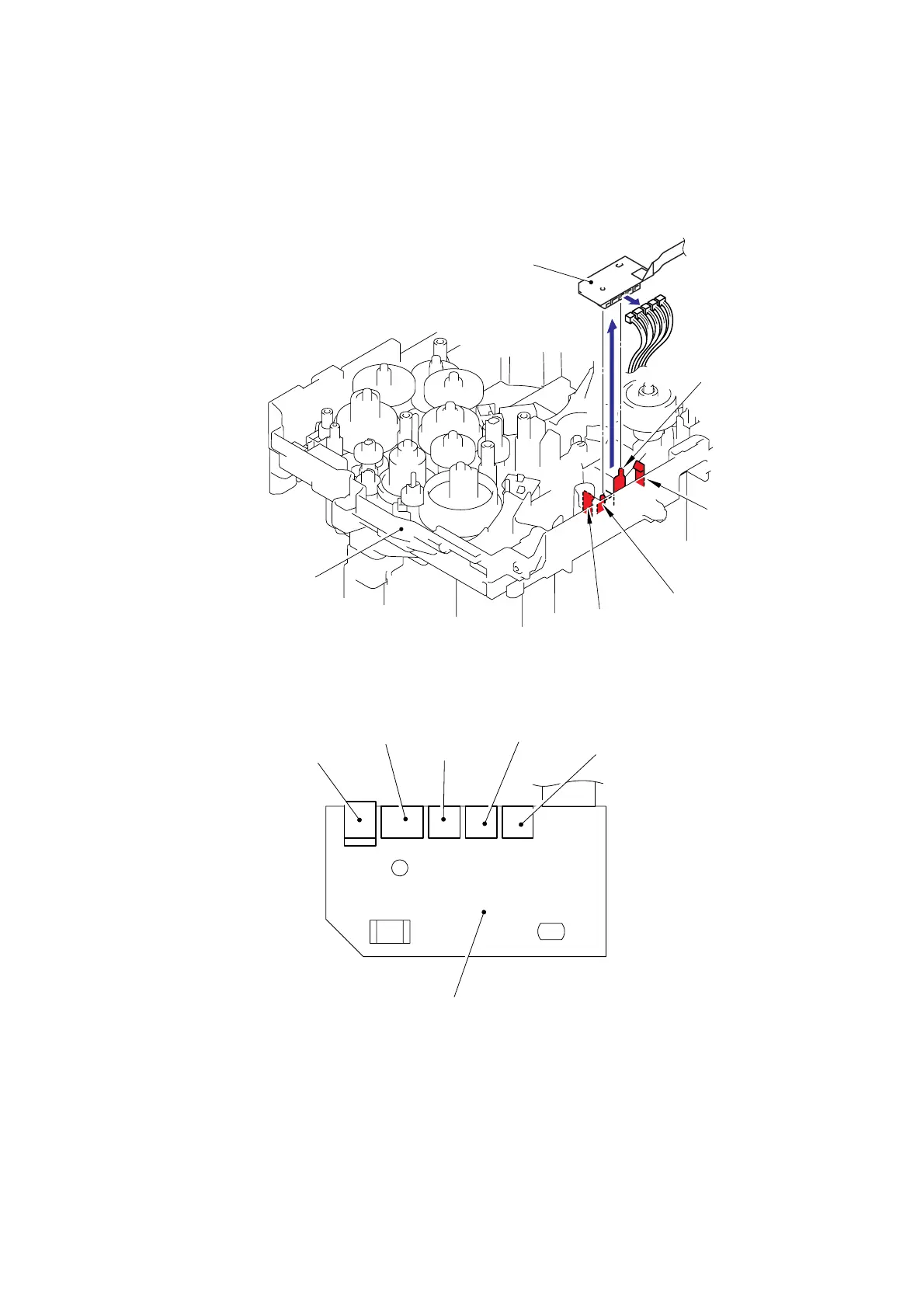

Fig. 5-132
Fig. 5-133
Relay front PCB ASSY
Frame L
Pin
Pin
Hoo
k
Hoo
k
T1 solenoid connecto
r
Register solenoid connecto
r
Toner sensor PCB connecto
r
Inter lock SW connecto
r
MP solenoid
connector
Relay front PCB ASSY
