(2) Remove the Connector harness.
(3) Disconnect the LT connector while pressing the hook inwards.

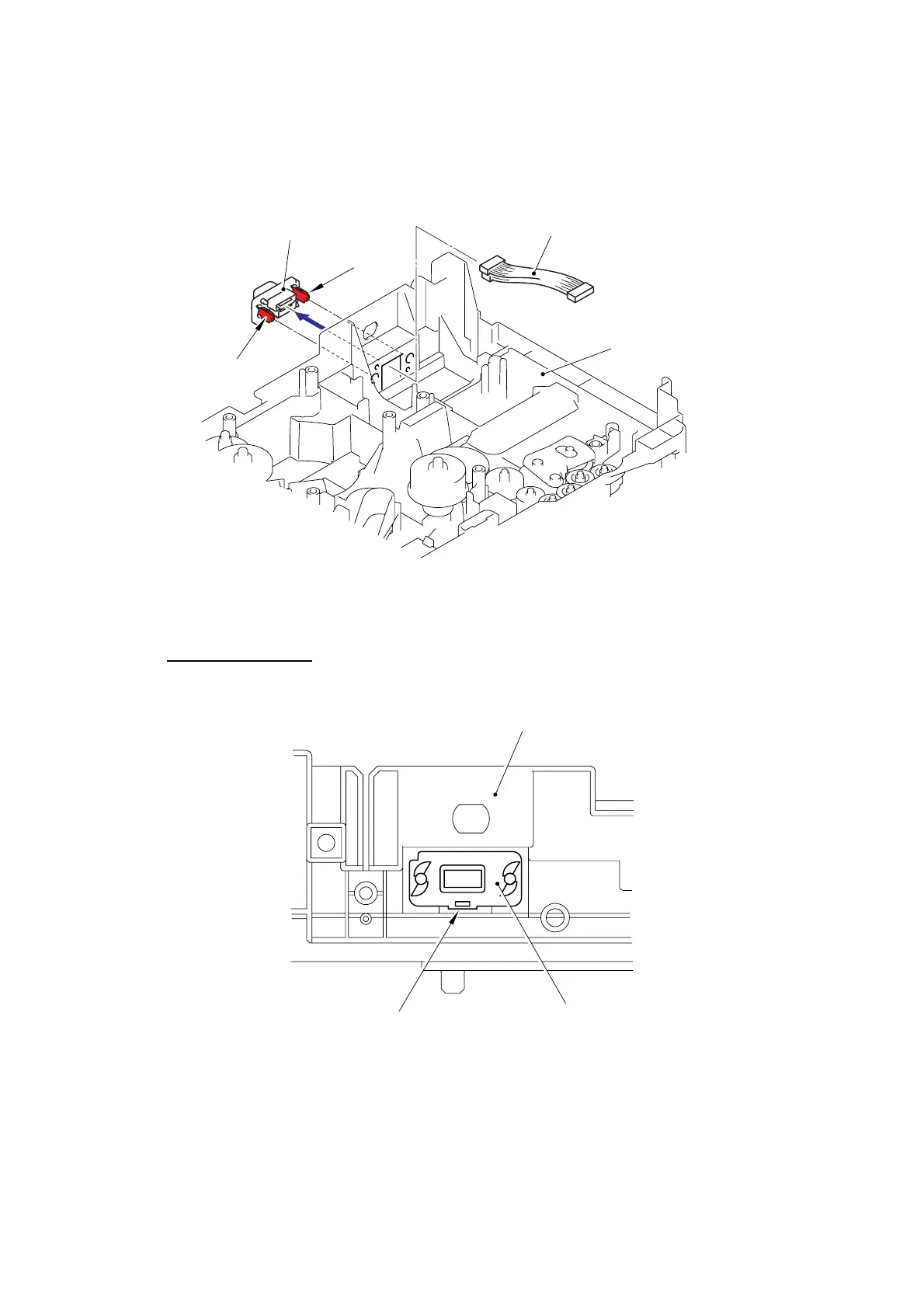

Fig. 5-130

Assembling Notes
When assembling the LT connector, ensure that its direction is correct referring
to the figure below.
Fig. 5-131
Connector harness
Frame L
LT connecto
r
Hoo
k
Hoo
k
Frame L
LT connecto
r
Boss
