Brother DCP-8065DN

Confidential
5-111
5.1.89 Frame L
(1) Remove the six bind B M4x12 Taptite screws from the Frame L.
(2) Remove the Frame L.

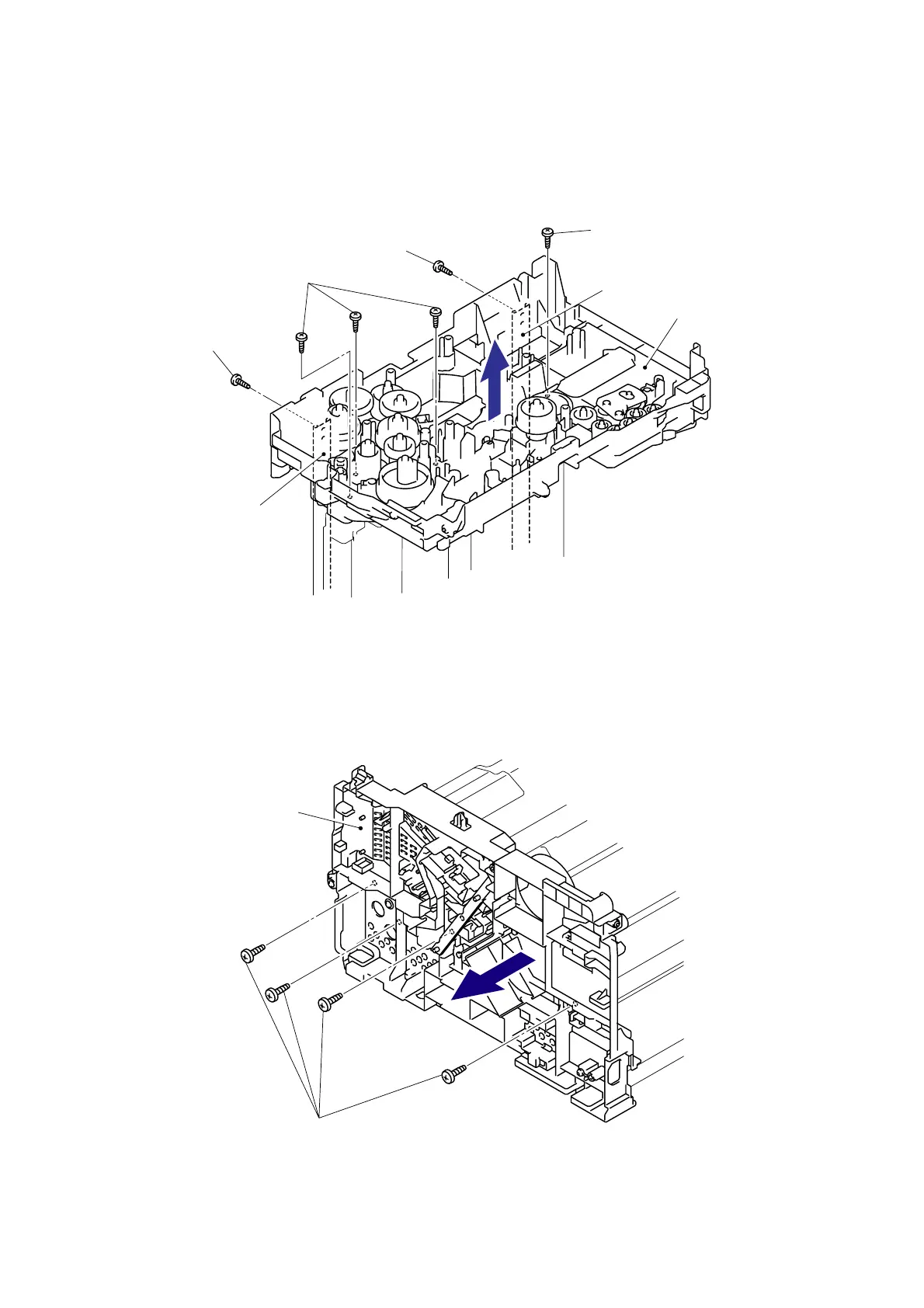

Fig. 5-171
5.1.90 Frame R
(1) Remove the four bind B 4x12 Taptite screws from the Frame R.
(2) Remove the Frame R.
Fig. 5-172
Frame L
Under ba
r
Under ba
r
Taptite,
b
ind B M4x12
Taptite,
b
ind B M4x12
Taptite,
b
ind B M4x12
Taptite,
b
ind B M4x12
Taptite,
b
ind B M4x12
Frame R
<Left side>
<Right side>
