5.1.50 CCD Module

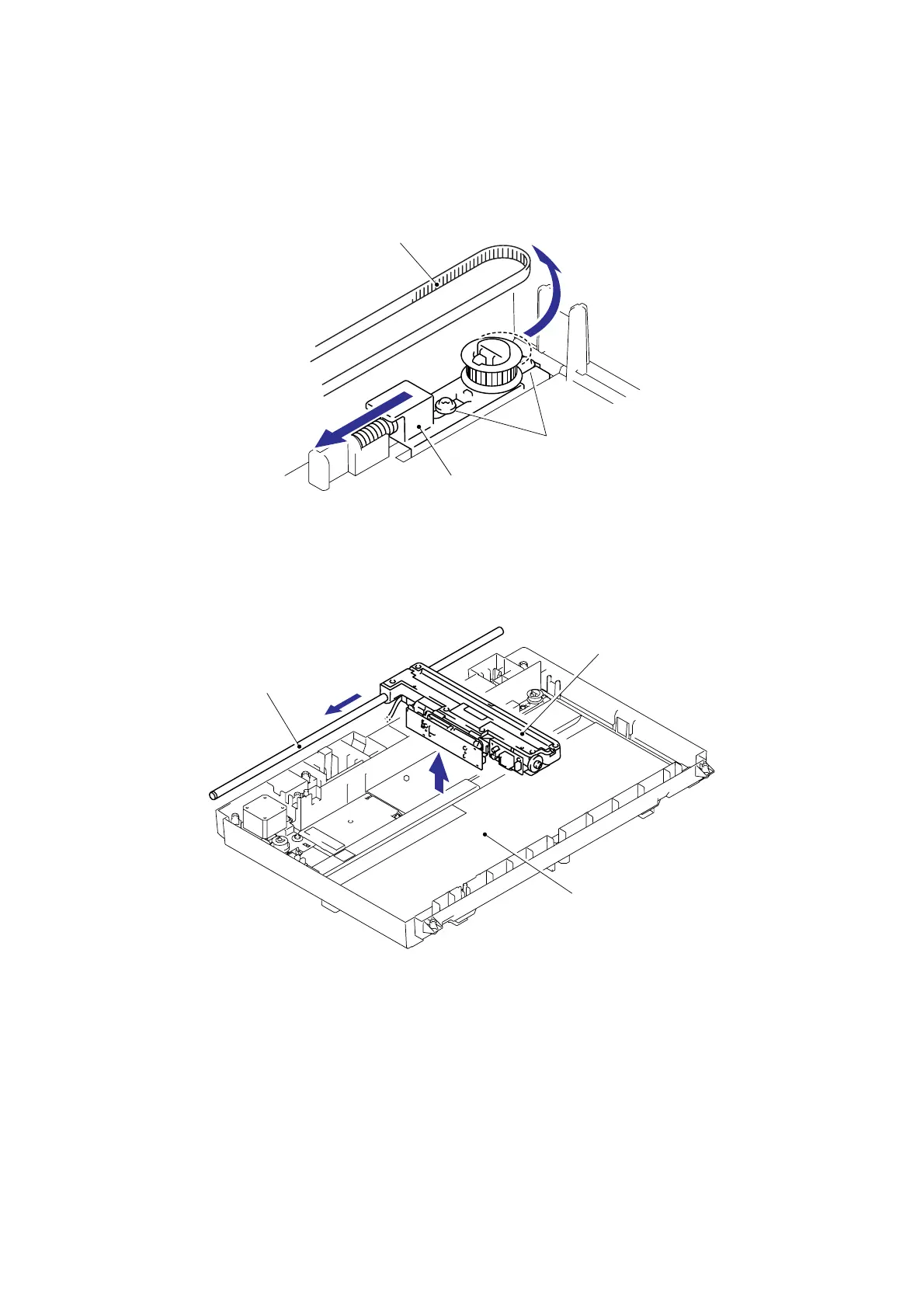

(1) Loosen the two B M3x8 Taptite screws, push the Pulley ASSY to the direction of the arrow
1a and remove the Belt.
Fig. 5-84
(2) Lift up the CCD Module and Guide shaft and pull the Guide shaft out of the CCD Module.
Fig. 5-85
CCD Module
Scanner base
Guide shaft
2a
2b
Taptite, B M3x8
Pulley ASSY
Belt
1a
1b
