Brother DCP-8065DN

Confidential
5-27

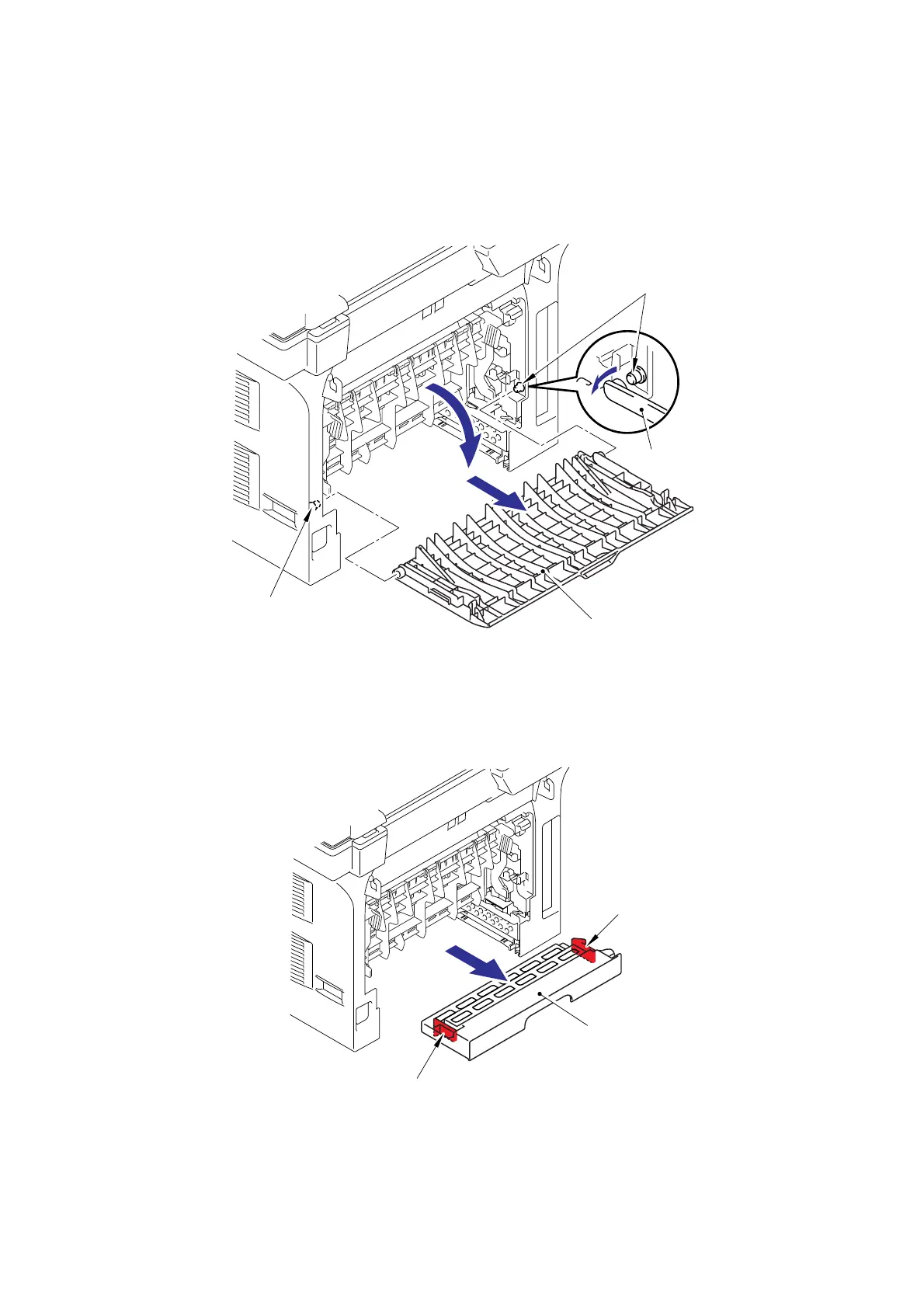

5.1.5 Back Cover
(1) Open the Back cover.
(2) Remove the Arms of the Back cover from the Pins on the machine body.
(3) Remove the Back cover.
Fig. 5-10
5.1.6 DX Blank Cover (For the models with out the DX only)
(1) Push the Hooks on both sides of the DX blank cover inwards to release them, and remove
the DX blank cover.
Fig. 5-11
Pin
Pin
Back cove
r
1
2
3
<Back side>
Ar
m
DX blank cove
r
Hoo
k
Hoo
k
