Brother DCP-8065DN

Confidential
5-119
5.1.93 Regist Actuator Front/Regist Actuator Spring

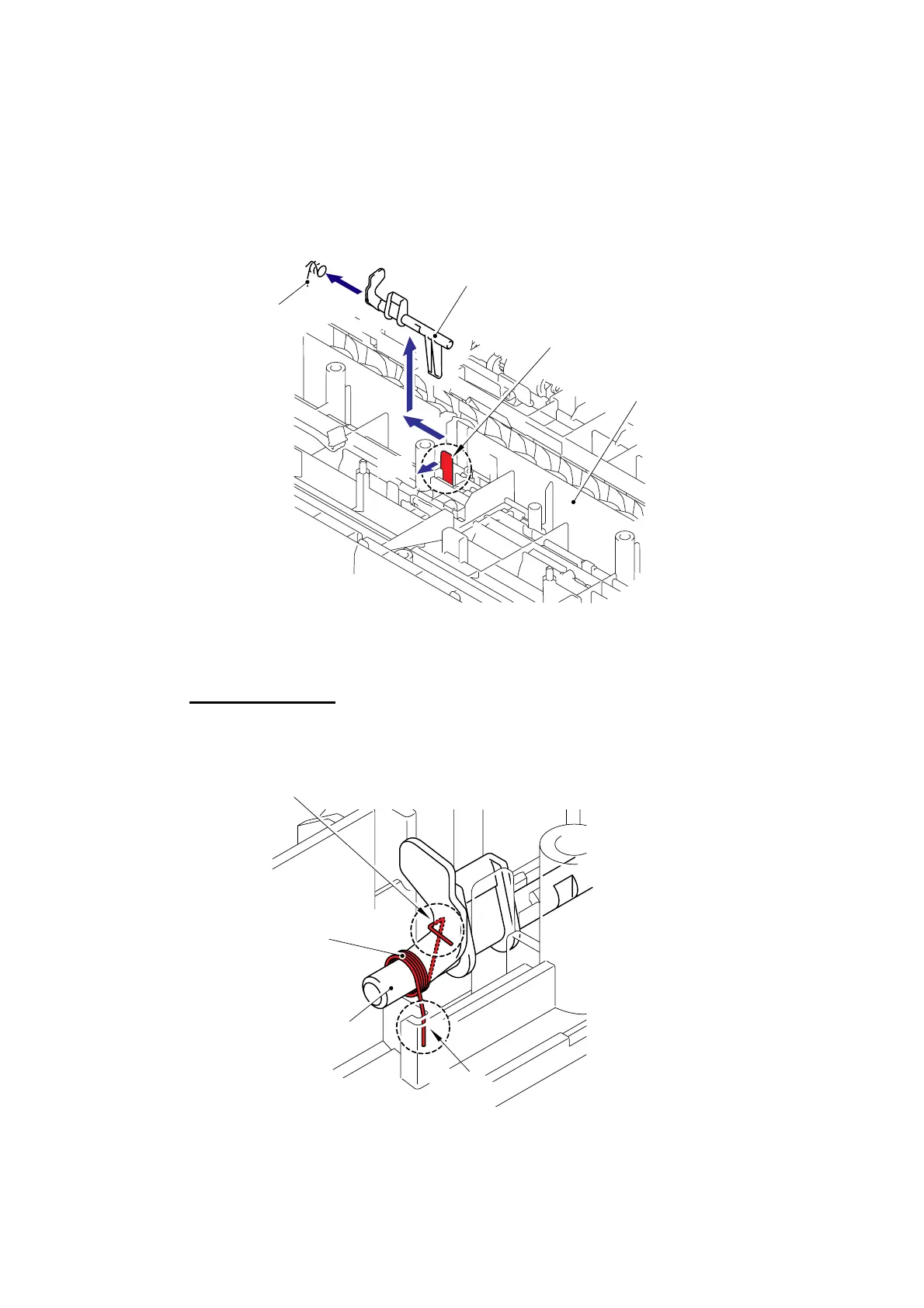

(1) Slide the Regist actuator front to the direction of the arrow 1b while pressing the Hook to the
direction of the arrow 1a and pull up the Regist actuator front to remove. Then, remove the
Regist actuator spring from the Regist actuator front.
Fig. 5-187

Assembling Notes
When assembling the Regist actuator spring, ensure that its direction is correct
referring to the figure below.
Fig. 5-188
Hoo
k
Paper feed unit
Regist actuator front
Regist actuator spring
1c
1b
1a
1d
Regist actuator front
Regist actuator spring
Hoo
k
Hoo
k
