5.1.8 Access Cover/Side Cover L

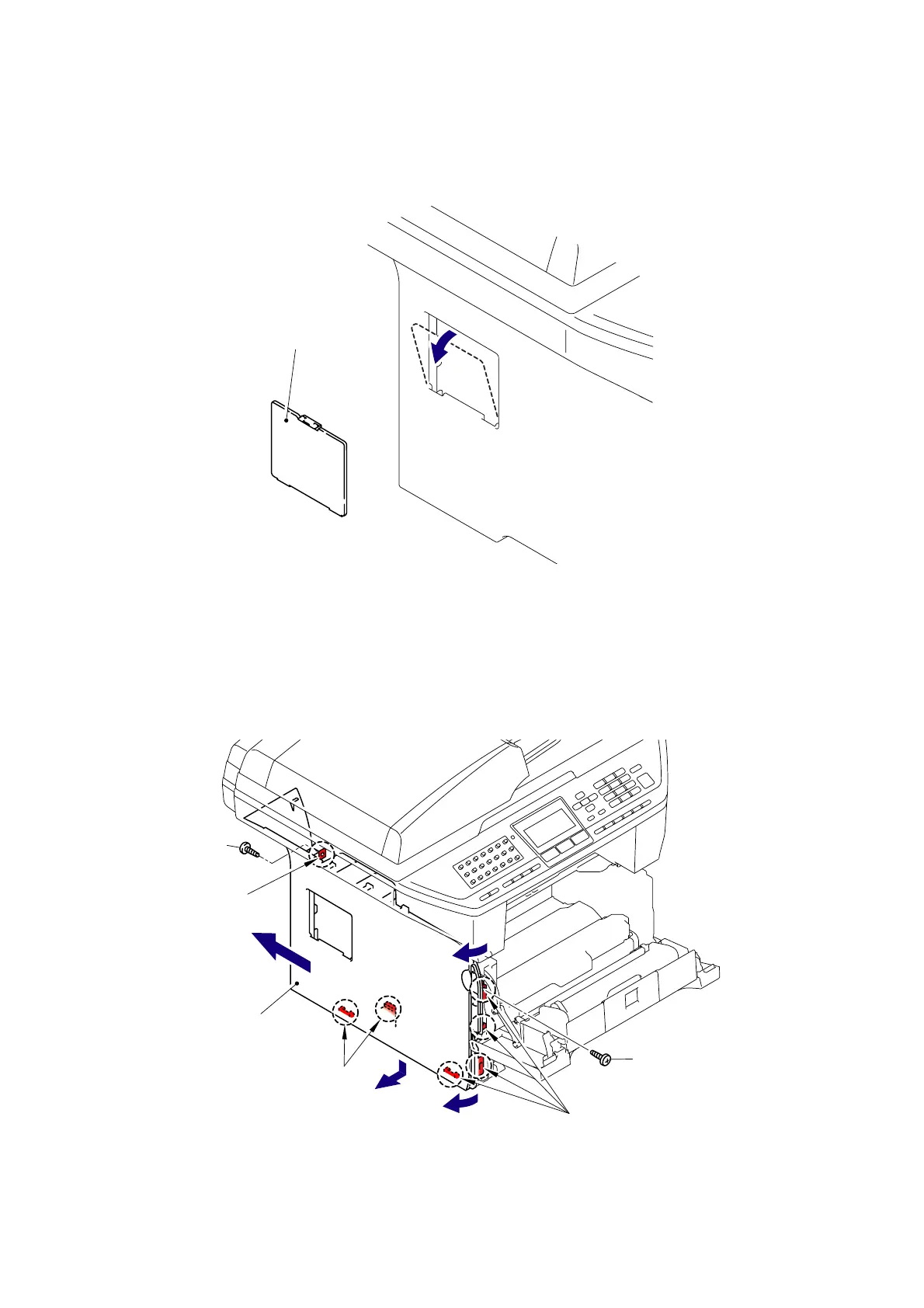

(1) Remove the Access cover.
Fig. 5-16
(2) Open the Front cover, remove the two bind B M4x12 Taptite screws, and then remove the
Side cover L by releasing the Hooks in the order of 2a to 2d.
Fig. 5-17
Access cove
r
1
Taptite, bind B M4x12
2a
2b
2c
2d
Hooks
Hooks
Hoo
k
Side cover L
Taptite, bind B M4x12
<Left side>
<Front side>
