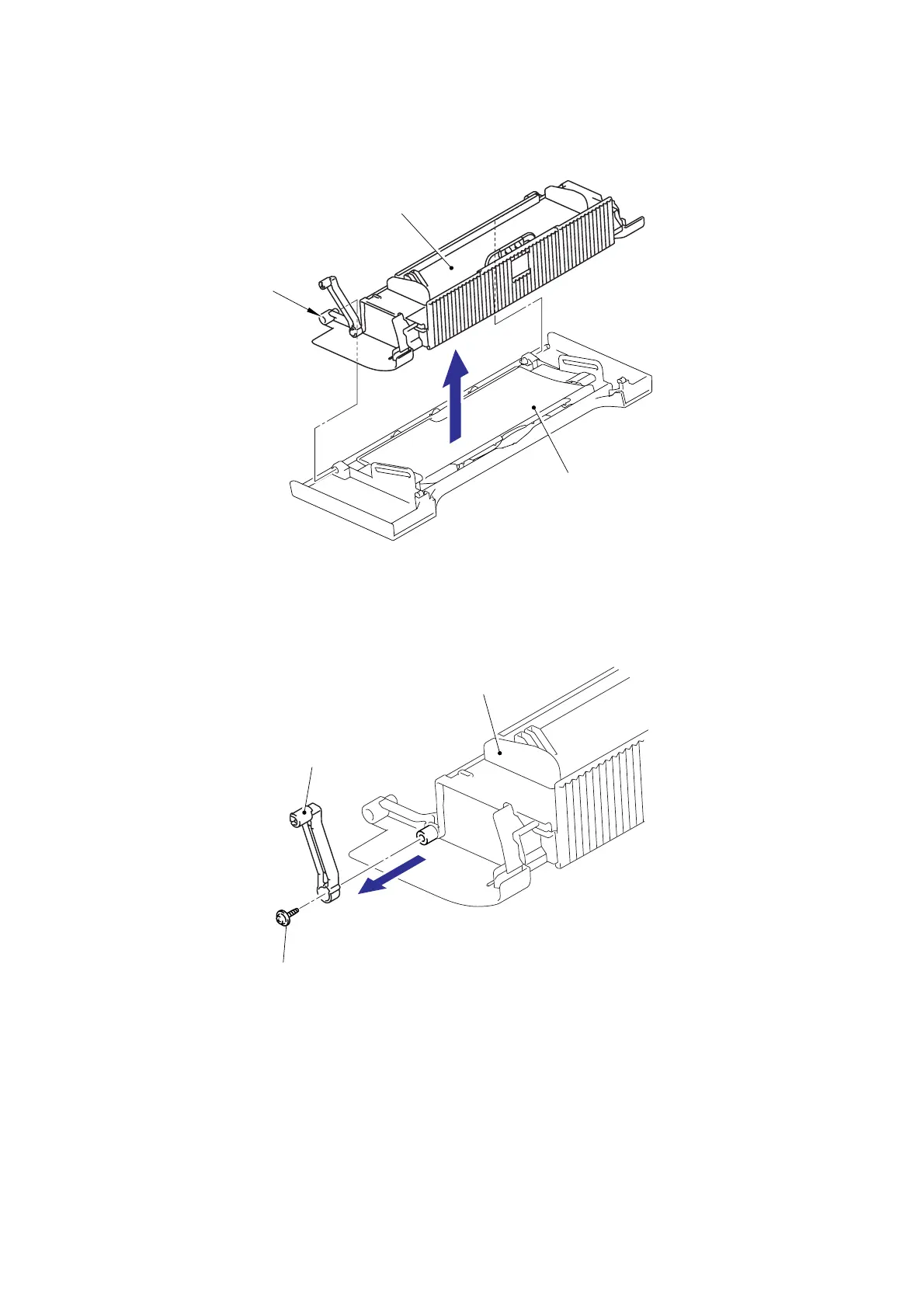

(5) Pull the Arm outwards and remove the Process cover ASSY from the MP tray cover ASSY.
Fig. 5-117
(6) Remove the cup B M4x10 Taptite screw, and then remove the Process cover stopper.
Fig. 5-118
Process cover ASSY
MP tray cover ASSY
Process cove
r
Process cover stoppe
r
Taptite, cup B M4x10
Ar
m
