Brother DCP-8065DN

Confidential
5-49

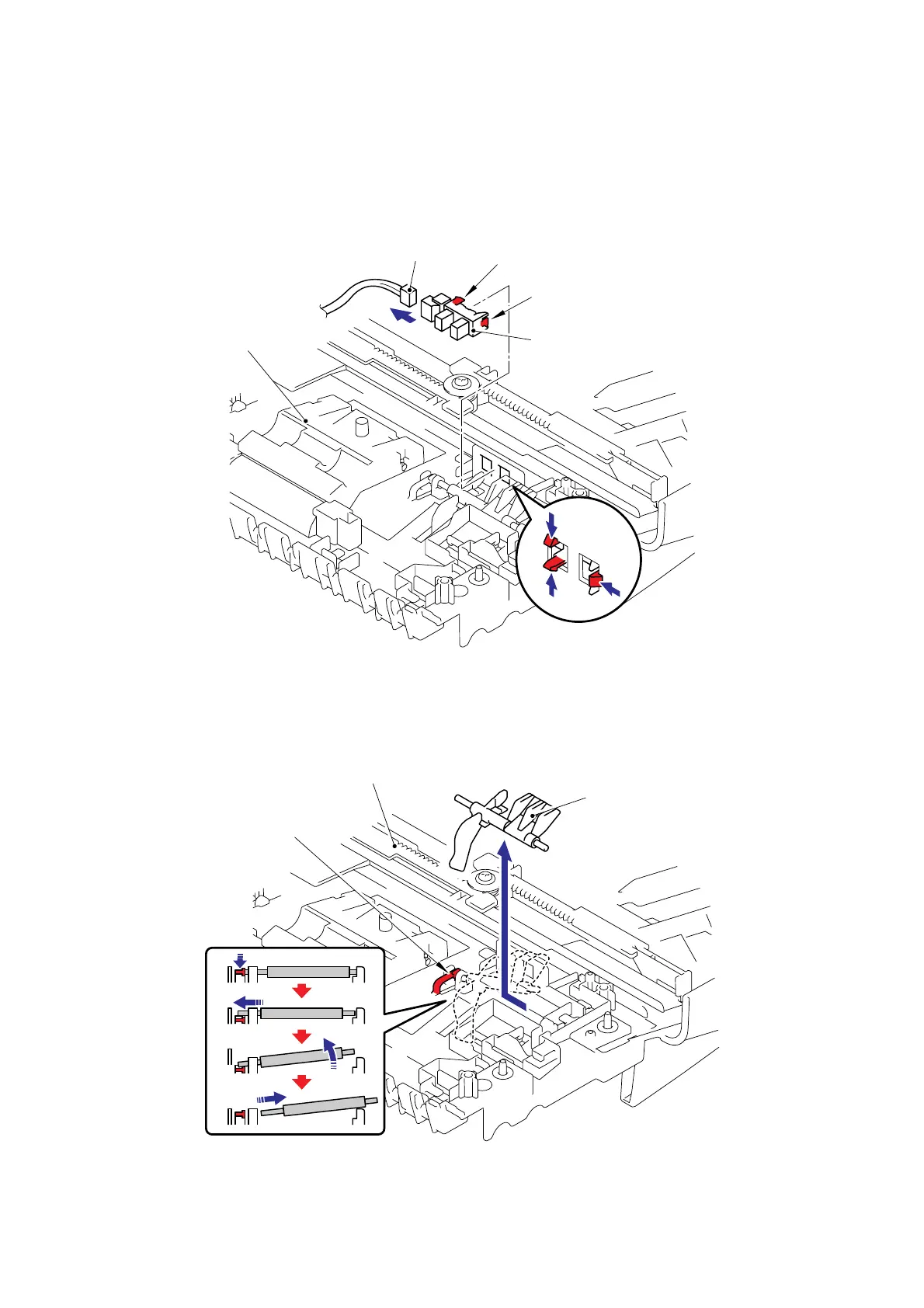

5.1.29 Actuator Front 2/Photo Interrupter (For the models with the DX only)
(1) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Paper
feed chute ASSY.
(2) Disconnect the Connector from the Photo interrupter.
Fig. 5-51
(3) Push down the Stopper, slide the Actuator front 2 to the stopper side and pull up the
Actuator front 2 to remove.
Fig. 5-52
Paper feed chute ASSY
Actuator front 2
Connecto
r
Photo interrupte
r
Paper feed chute ASSY
Hoo
k
Hoo
k
Stoppe
r
