Brother DCP-8065DN - Page 188

Confidential
5-87

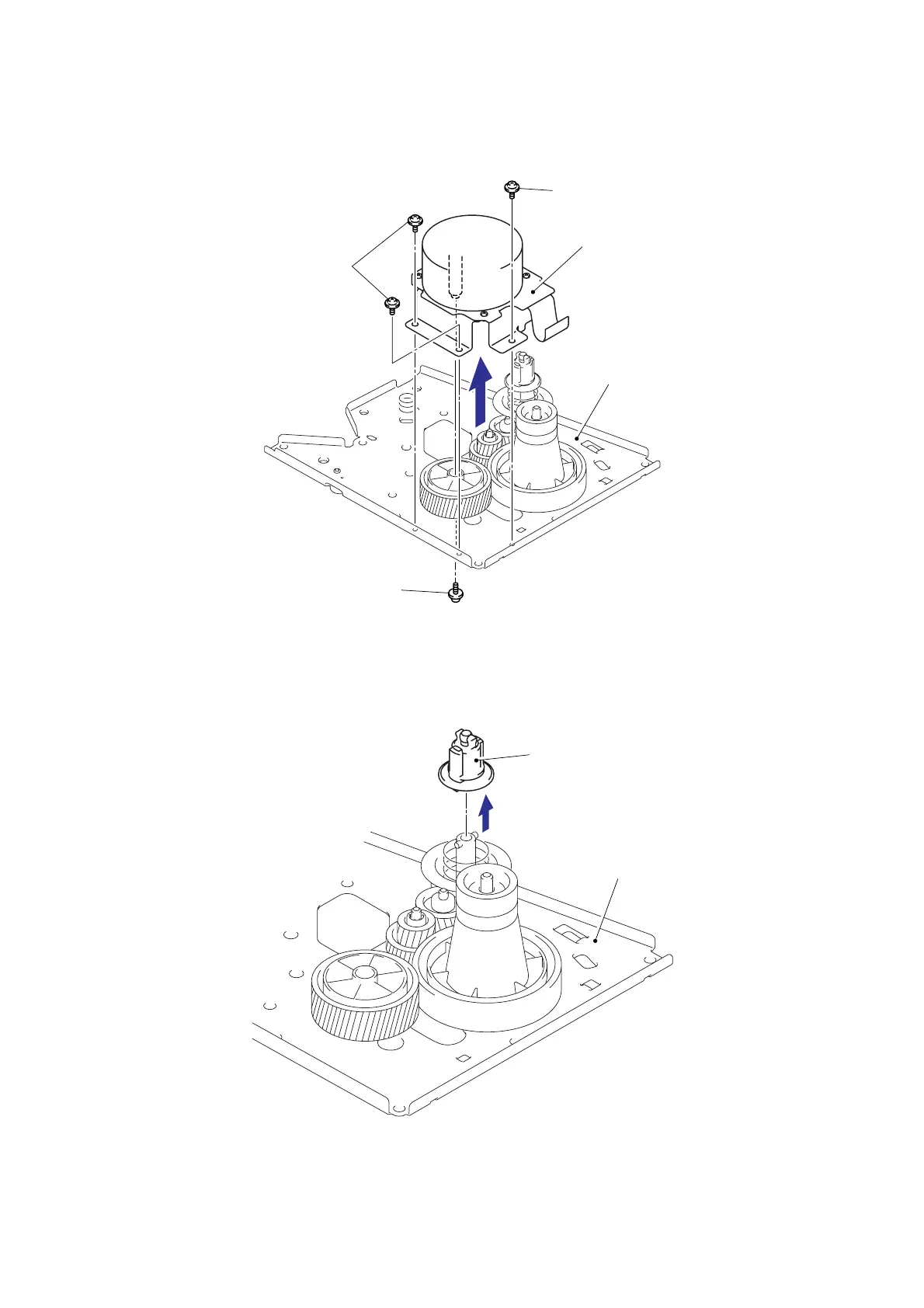

(4) Remove the four cup S M3x6 Taptite screws, and then remove the Main motor ASSY AL.
Fig. 5-123
(5) Remove the Develop joint from the Gear plate calking ASSY AL.
Fig. 5-124
Taptite, cup S M3x6
Taptite, cup S M3x6
Taptite, cup S M3x6
Main motor ASSY AL
Gear plate calking ASSY AL
Develop joint
Gear plate cal
k
ing ASSY AL
