Confidential
5-106

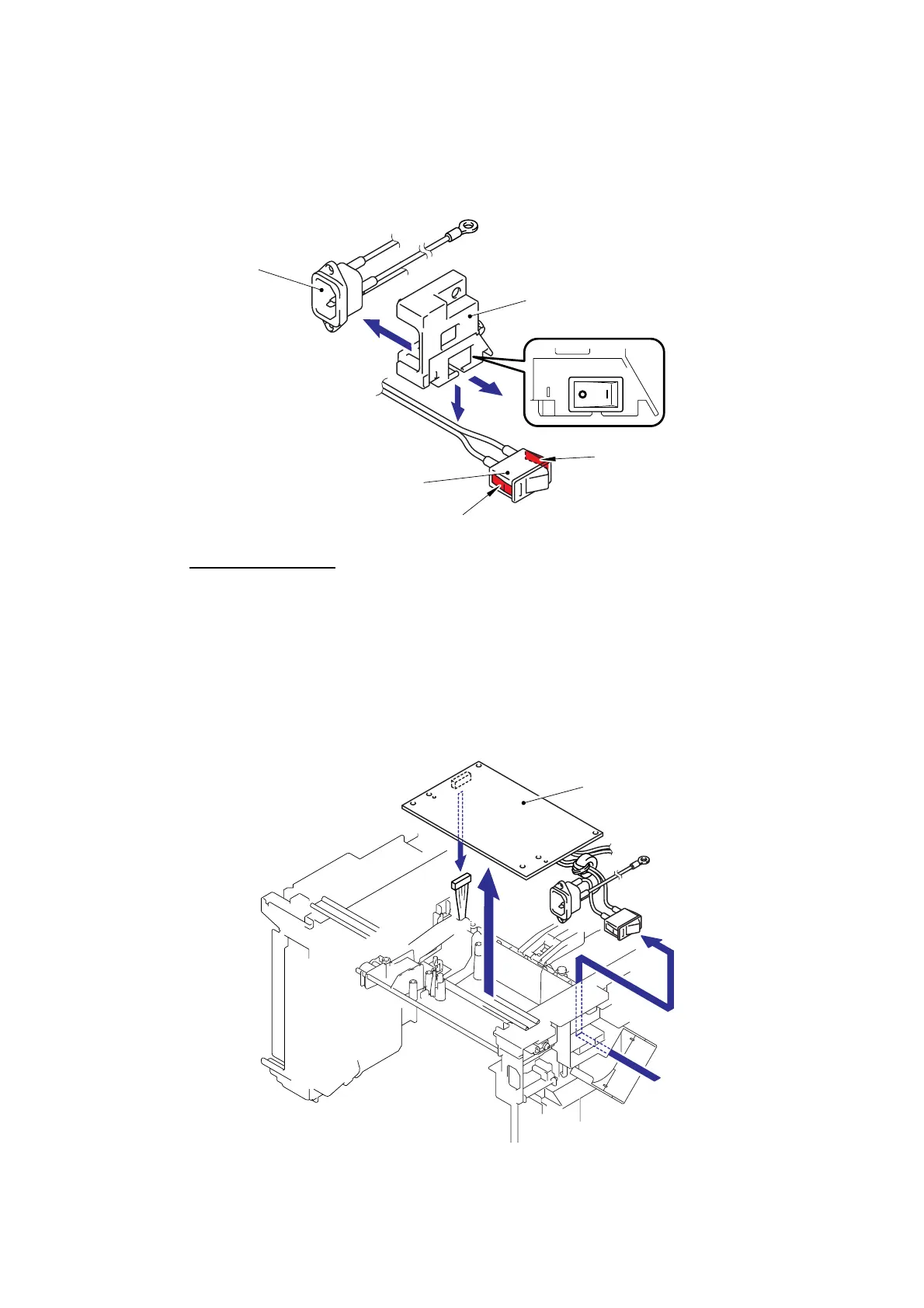

(10) Remove the Inlet harness ASSY from the SW holder.
(11) Press the Hooks on both sides of the Power supply switch, pull out the Power supply switch
to the direction of the arrow 11a and pull the wire out of the groove on the SW holder.
Fig. 5-161
îš„
Assembling Notes
When assembling the power supply switch onto the SW holder, pay attention to the
direction of the switch.
(12) Remove the harness of the fuser unit and power supply harness.
(13) Put each harness through the opening where the fan 60 unit is assembled and remove the PS
PCB unit.
(14) Remove the harness from the PS PCB unit.
Fig. 5-162
PS PCB unit
13
14
SW holde
r
Power supply switch
Inlet harness ASSY
10
11b
<Back side>
Hoo
k
Hoo
k
11a
