Brother DCP-8065DN - Page 209

Confidential
5-108

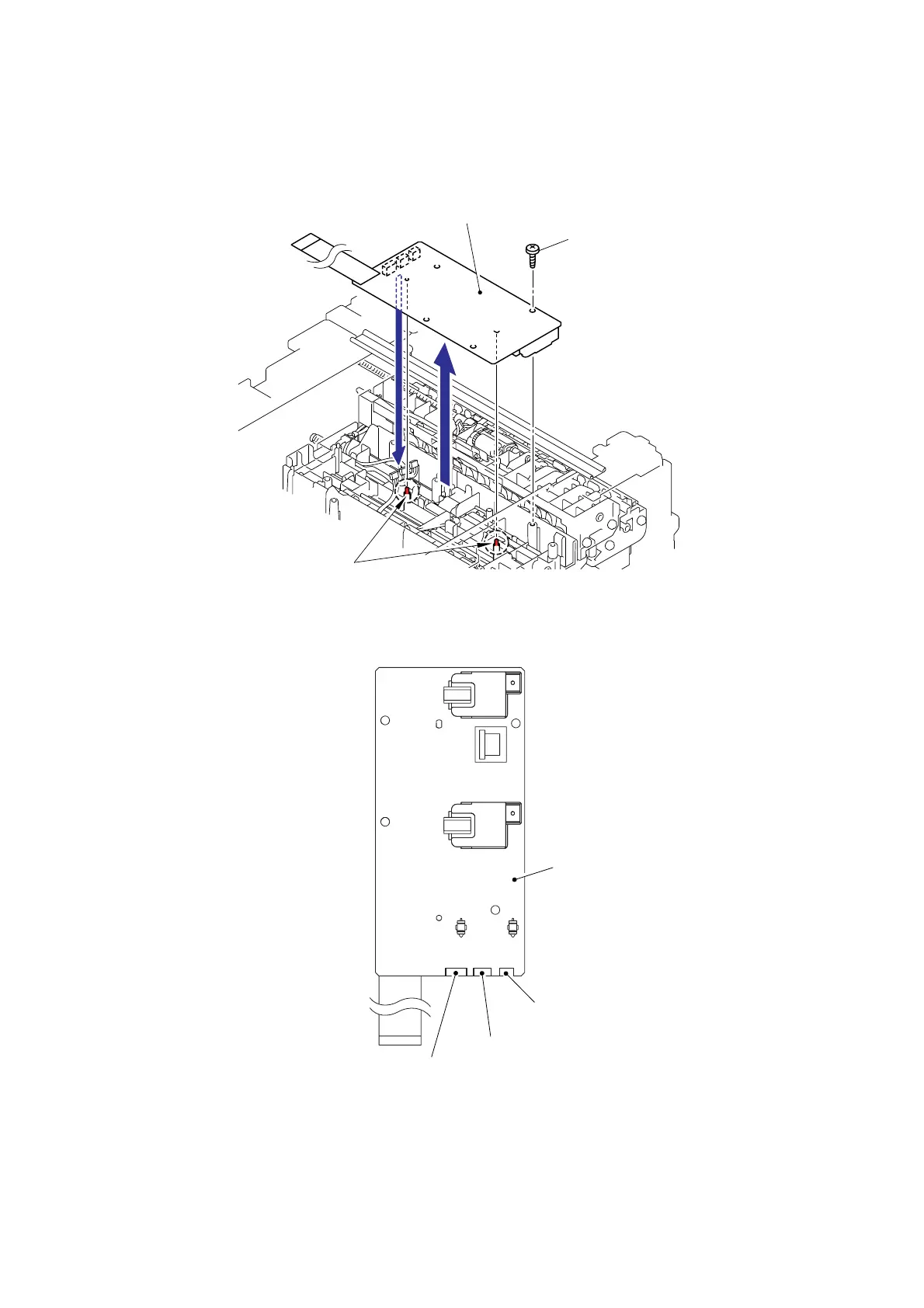

(3) Remove the bind B M4x12 Taptite screw, and then remove the High-voltage PS PCB ASSY.
(4) Disconnect the three connectors from the High-voltage PS PCB ASSY.
Fig. 5-165
Fig. 5-166
Taptite, bind B M4x12
High-voltage PS PCB ASSY
Pins
High-voltage PS PCB ASSY
MP PE sensor connecto
r
PE EG sensor connecto
r
Toner LED PCB connecto
r
