Brother DCP-8065DN

6-24 Confidential

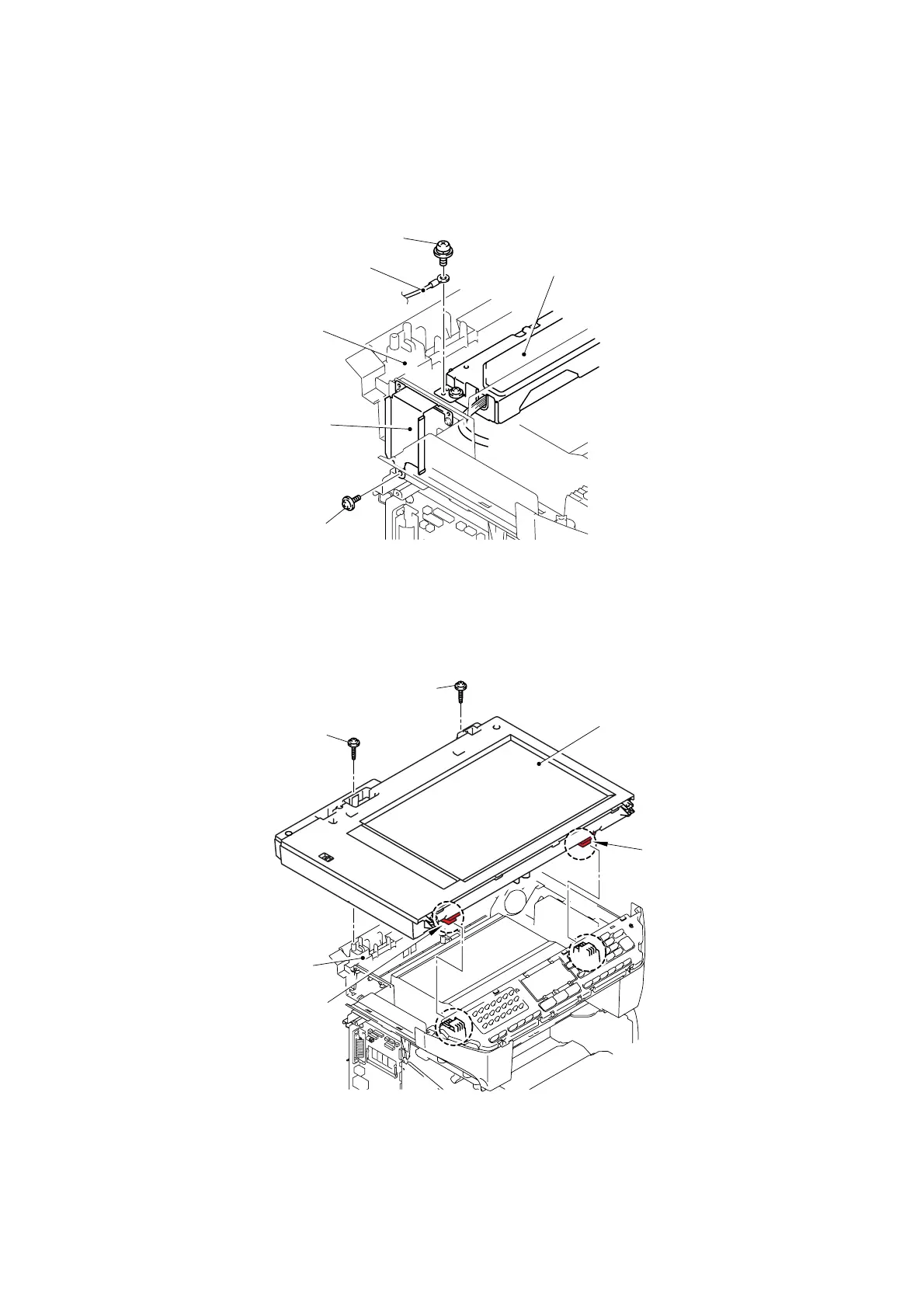

(13) Secure the Screw pan (S/P washer) M3.5x6 of the NCU FG harness ASSY ALFB.
(14) Secure the cup S M3x6 SR Taptite screw.
Fig. 6-42
(15) Catch the Hooks of the Scanner unit FLFB into the Joint cover and secure the Scanner unit
FLFB with the two cup B M4x20 Taptite screws.
Fig. 6-43
Taptite, cup B M4x20
Taptite, cup B M4x20
Scanner unit FLFB
Hook
Hook
Joint cover
N
CU FG harness ASSY ALFB
Taptite, cup S M3x6 SR
Screw pan (S/P washer) M3.5x6
N
CU unit
Driver PCB shield ALFB
Joint cover
