(18) Connect the two Connectors into the Main PCB.
(19) Connect the Connector into Driver PCB.
(20) Secure the ADF FG harness and FB FG harness with the cup S M3x6 Taptite screw.

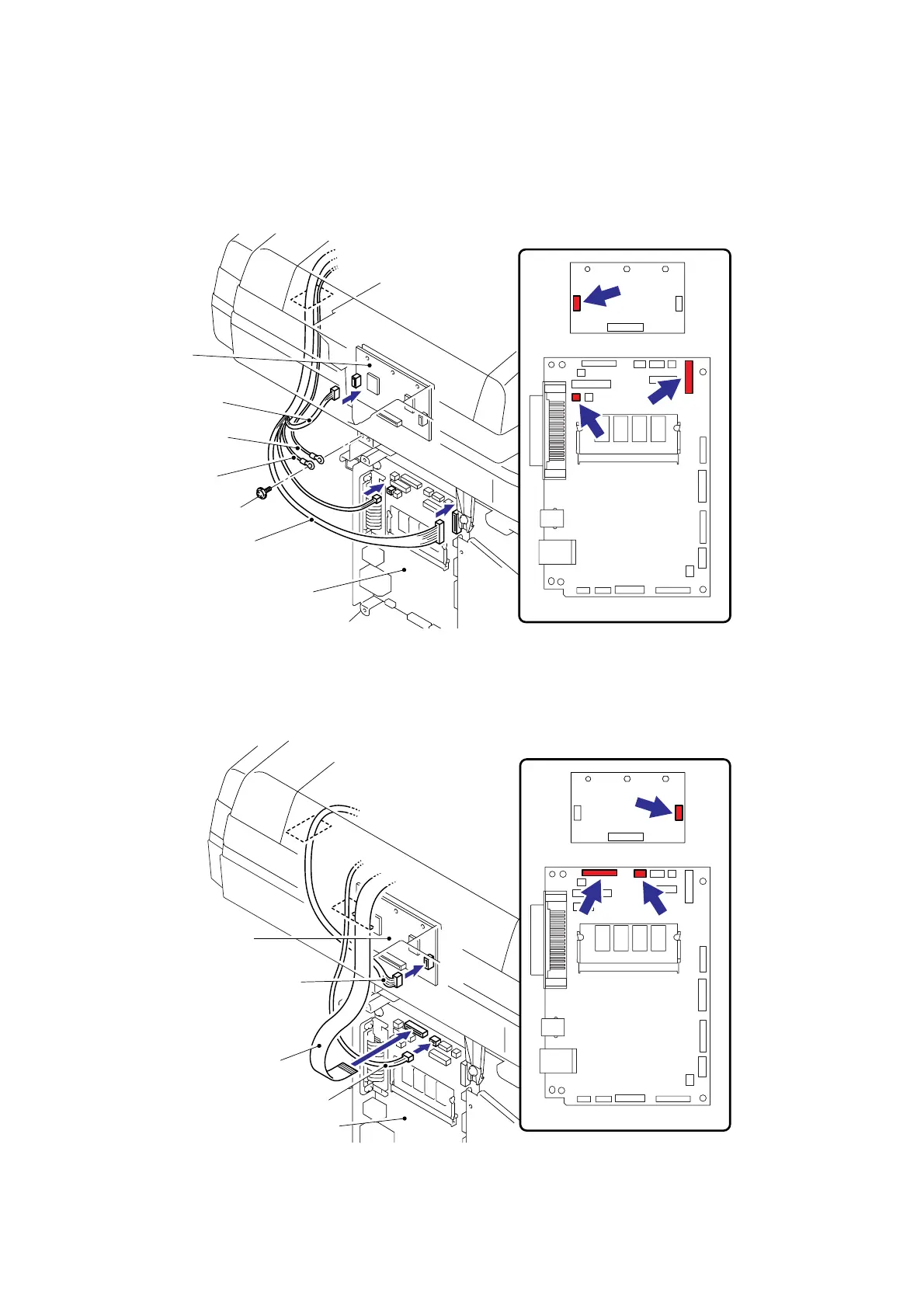

Fig. 6-46
(21) Connect the connectors of the Photo interrupter and FFC cable into the Main PCB.
(22) Connect the connector of the Scanner motor harness into the Driver PCB.
Fig. 6-47
Driver PCB
Connector
(ADF motor harness)
FB FG harness
ADF FG harness
Main PCB
Connectors
(ADF relay harness)
Taptite, cup S M3x6
Driver PCB
Scanner motor harness
FFC cable
Photo interrupter
Main PCB
Main PCB
Driver PCB
Main PCB
Driver PCB
