Brother DCP-8065DN

6-28 Confidential

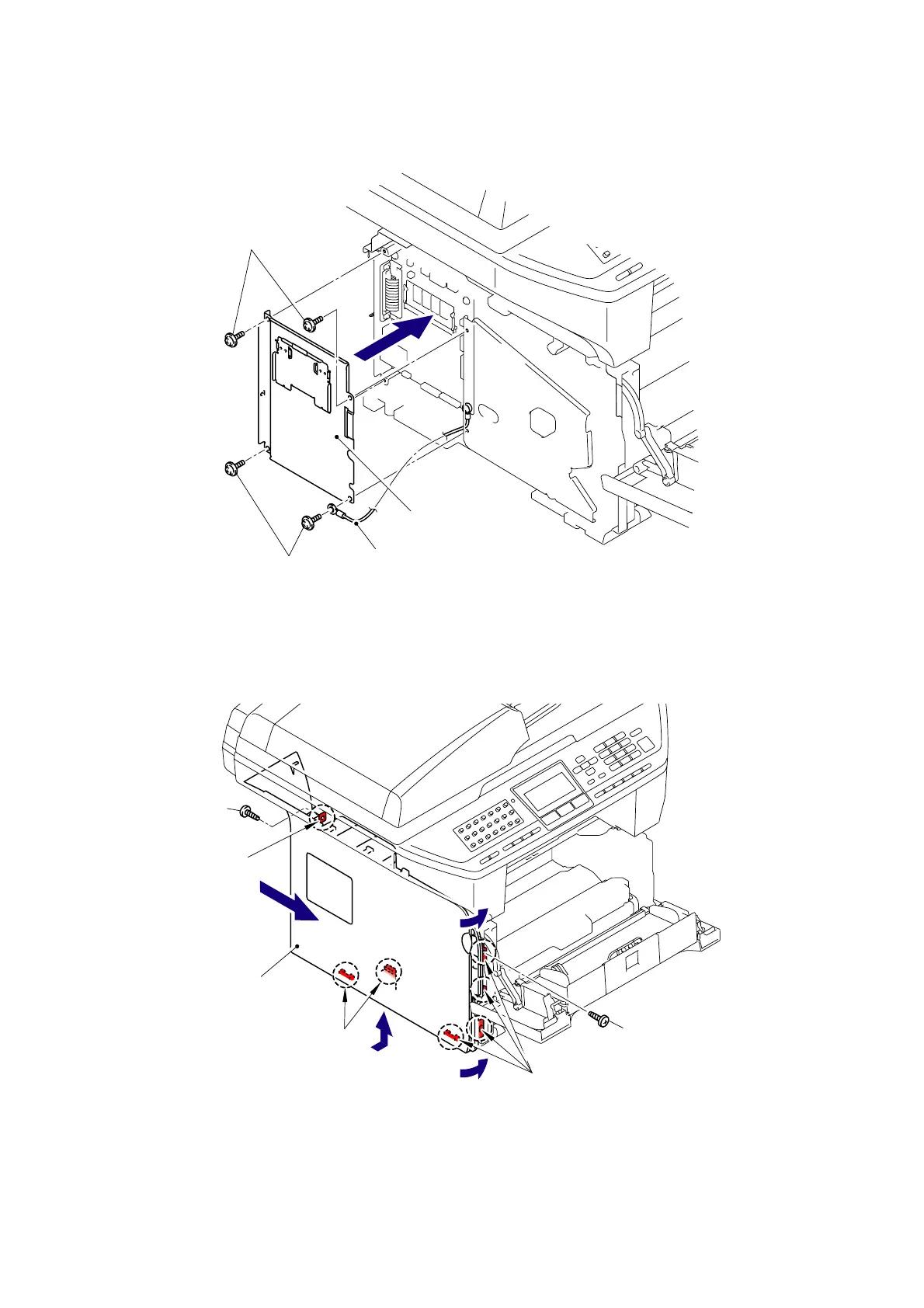

(25) Secure the Shield cover and FG harness with the four cup S M3x6 SR Taptite screws.
Fig. 6-50
(26) Catch the Hooks in the order of the arrows and secure the Side cover L with the two bind B
M4x12 Taptite screws.
Fig. 6-51
Taptite, cup S M3x6 SR
Shield cover
Taptite, cup S M3x6 SR
FG harness
Taptite, bind B M4x12
26d
26c
26b
26a
Hooks
Hooks
Hook
Side cover L
Taptite, bind B M4x12
