Brother DCP-8065DN Servise Manual

6-37 Confidential

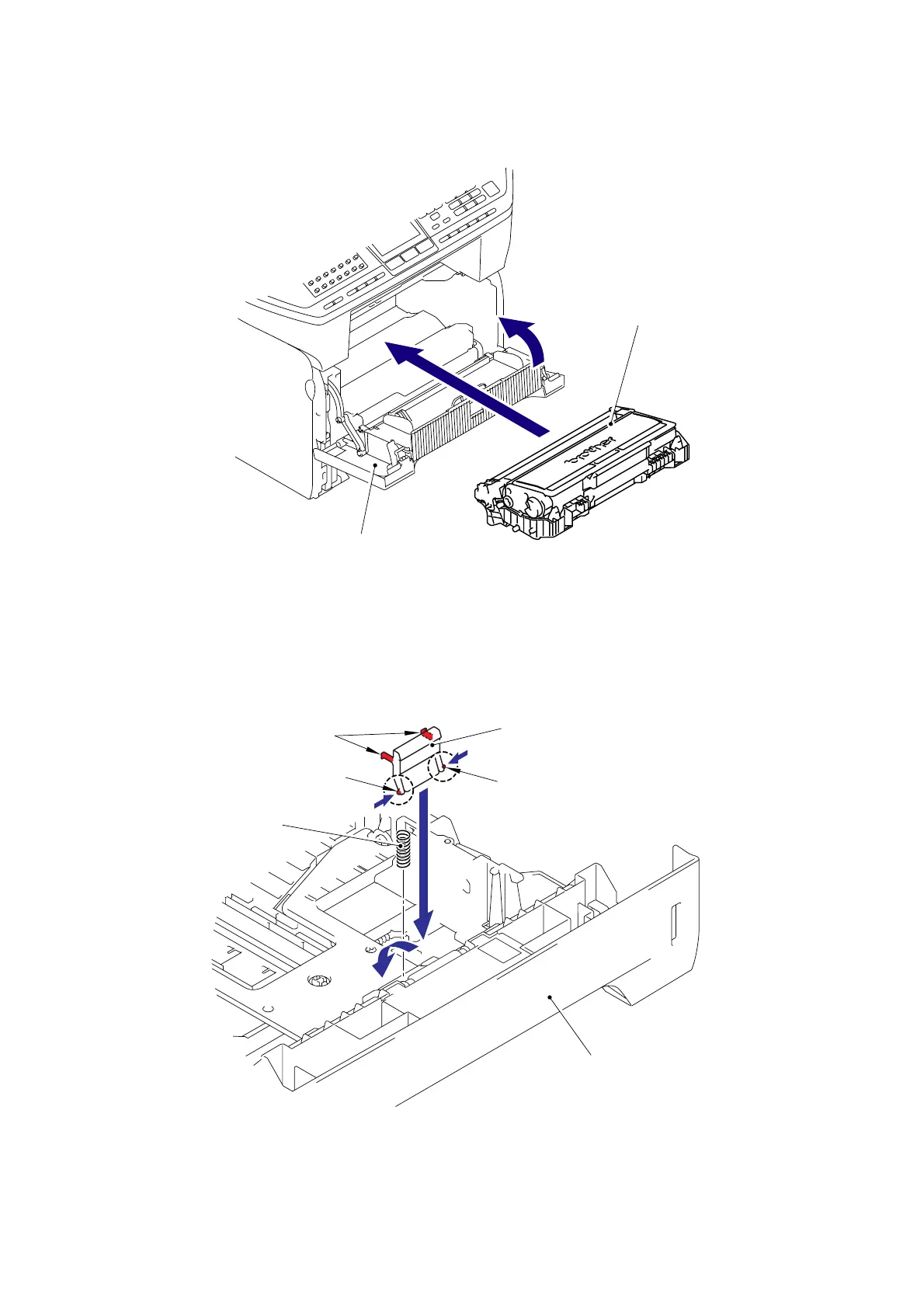

(5) Install the Drum /toner ASSY, and close the Front cover.
Fig. 6-68
(6) Set the Separation pad spring.
(7) Put the Hooks of the Separation pad ASSY into the Paper tray, and turn the Separation pad
ASSY to the direction of the arrow 7c to catch the Hooks into the Paper tray.
NOTE: Check that the Separation pad spring is assembled correctly.
Fig. 6-69
Drum/toner ASSY
Front cover
5a
5b
Paper tray
Separation pad ASSY
Separation pad spring
Hook
Hook
Hooks
7c
7b
7b
7a

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
