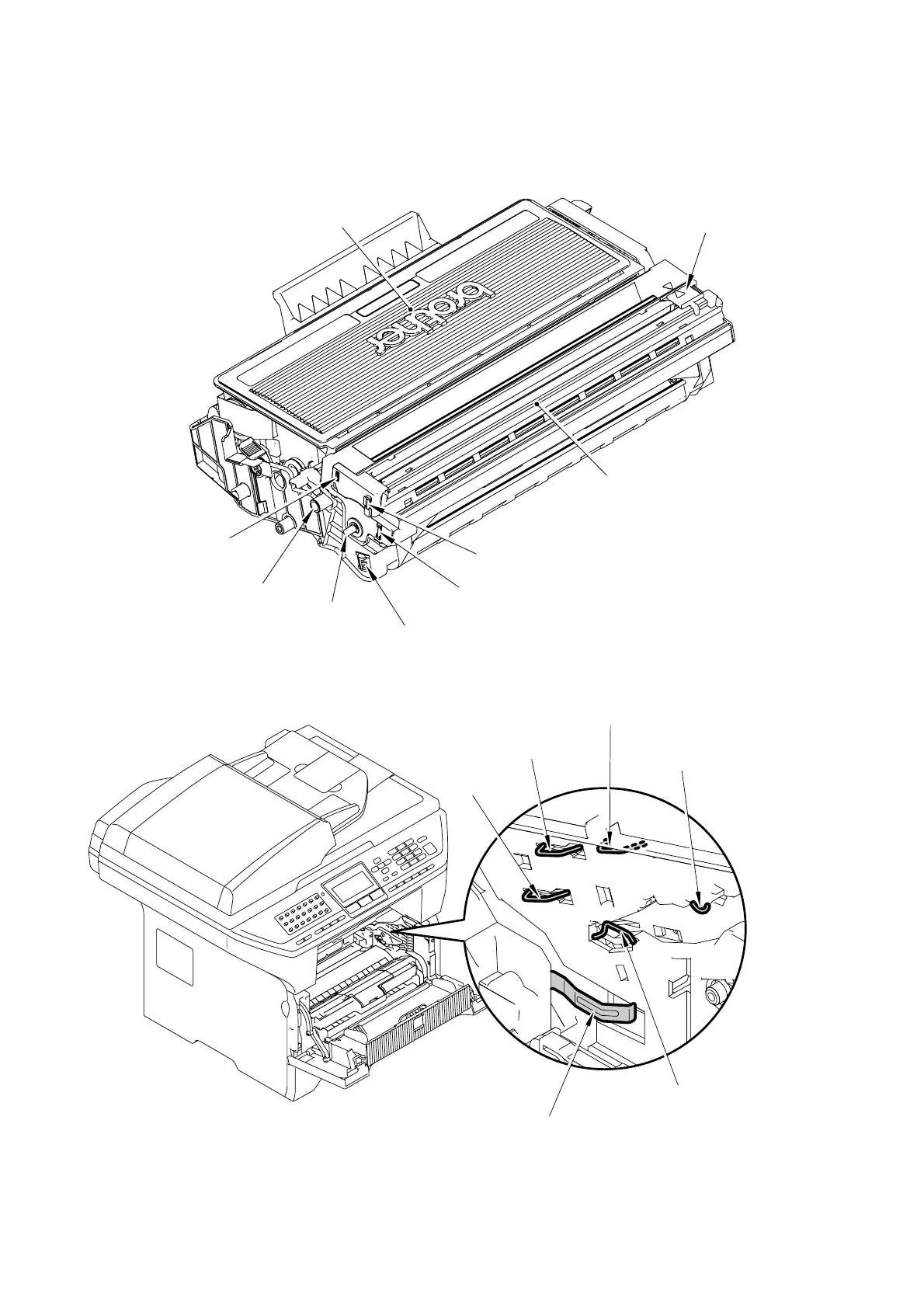

[ 4 ] Location of grounding contacts
<Drum unit>
Fig. 9-7
<Machine body & paper tray>
Fig. 9-8
Toner cartridge
Drum Unit
(4) Developer roller
(1) Exposure drum
(5) Grid
(7) Cleaner
(3) Charge
(2) Wire cleaner
(6) Transfer roller
(4) Developer roller
(5) Grid
(7) Cleaner
(1) Exposure drum
(6) Transfer roller
(3) Charge
