Confidential
3-11
The plate ASSY in the paper tray is pushed up with the motor drive and not with the spring in
order to maintain the constant paper feeding performance regardless the number of sheet remained
in the tray.

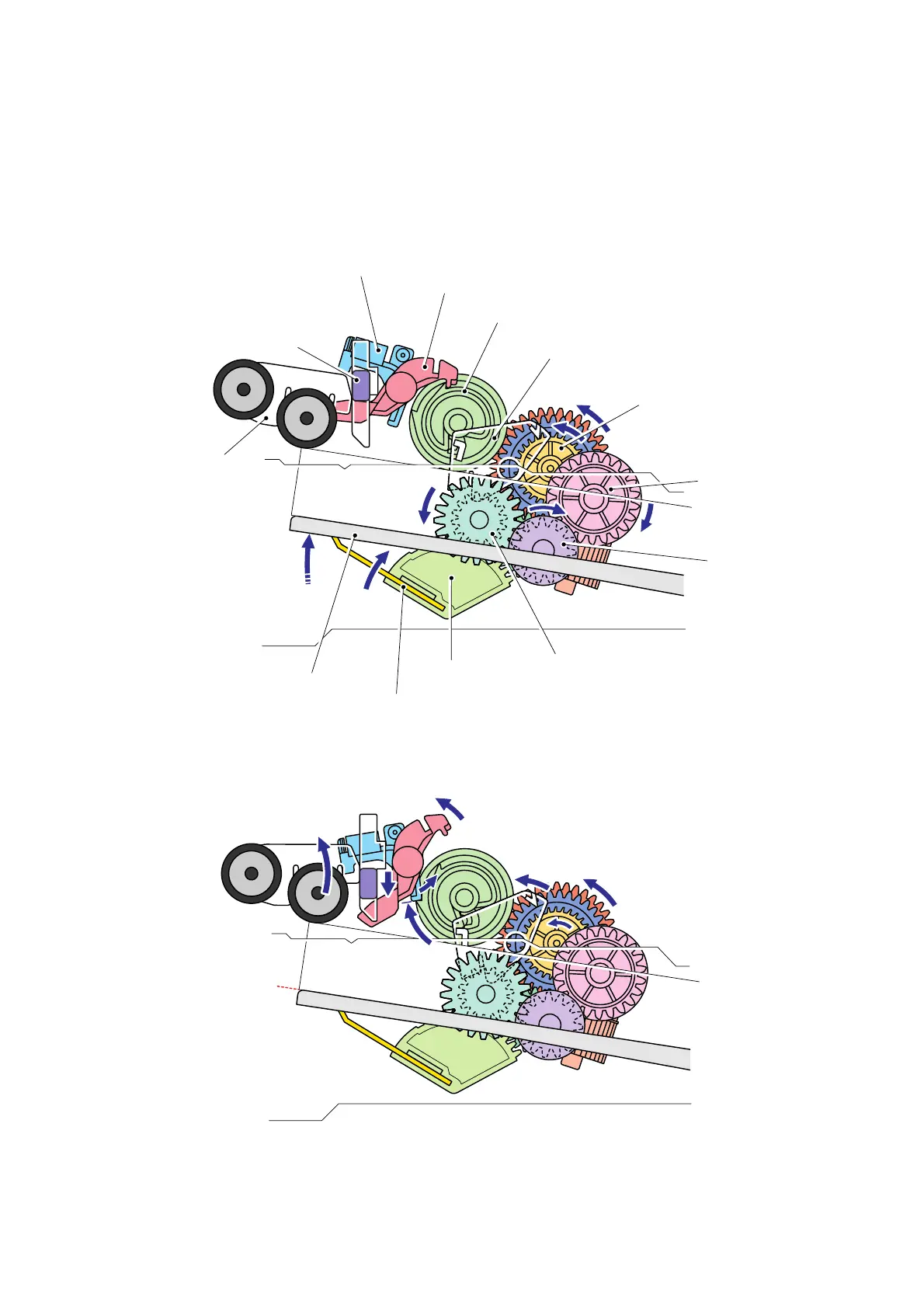

When the paper tray (Tray1 cassette) is installed into the machine, the lift gear 46 is rotated, and
the motor drive is transmitted to the plate ASSY so that it is pushed up.
Fig. 3-12
When the roller holder ASSY is pushed up, the hook is released by the lift arm, and the rotation of
the clutch gear is stopped. Then, the pressure plate is stopped to push up.
Fig. 3-13
P/P clutch hook A2
P/P clutch hook A1
P/P gear 29 clutch cam
P/P clutch hook B
P/P differential
P/P gear 22/B23 tray drive
Gear 15
Gear 21-16
Lift gear 46
Plate ASSY
Plate up plate
Stop
Lift arm
Roller holder ASSY
