Brother DCP-8065DN - Page 213

Confidential
5-114

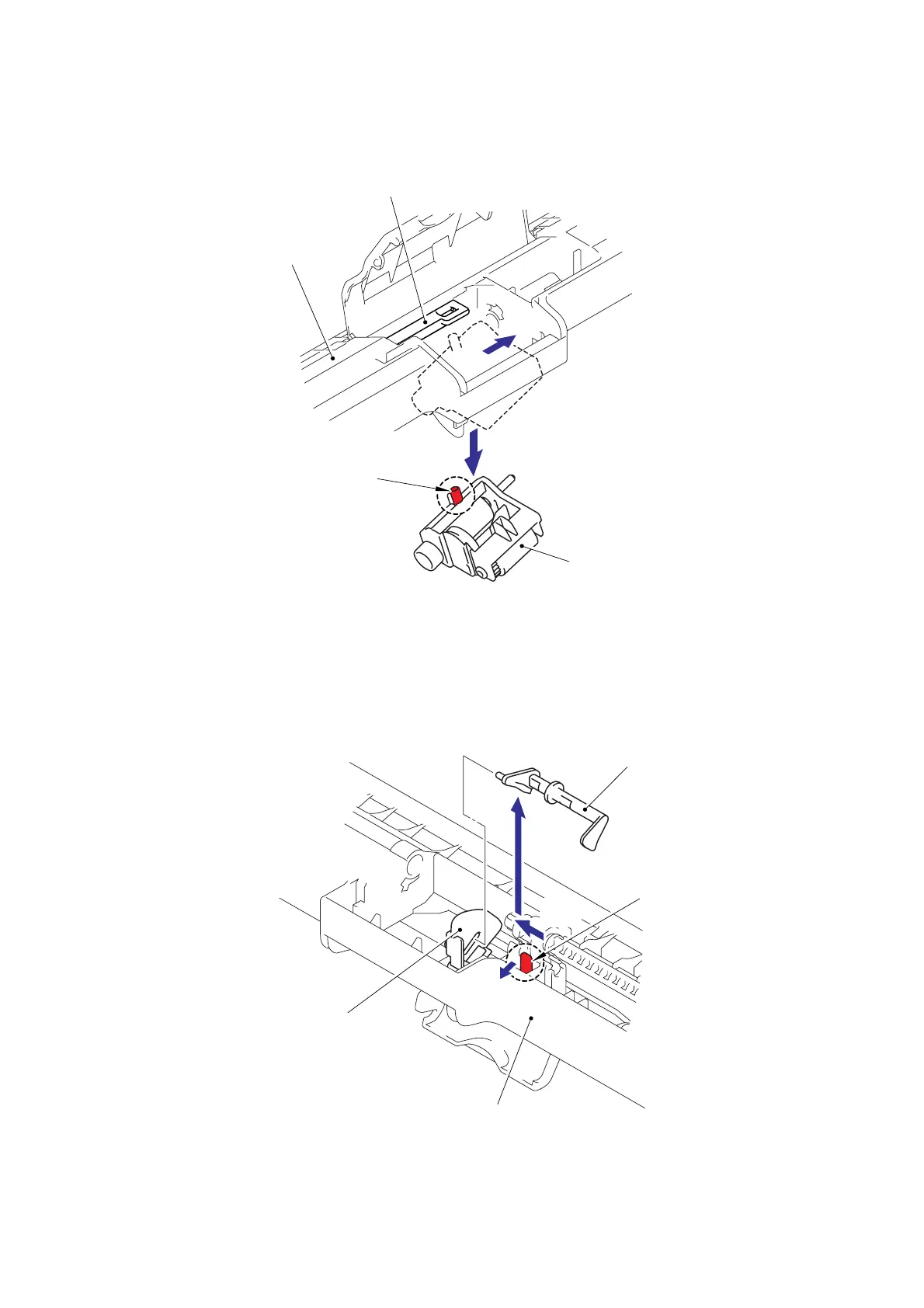

(6) Slide the MP roller holder ASSY to the direction of the arrow 6a and pull it up to remove.
Fig. 5-177
(7) Turn the MP feed frame upside down.
(8) Slide the PE actuator MP B to the direction of the arrow 8b while pressing the Hook to the
direction of the arrow 8a, and pull it up to remove.
Fig. 5-178
Lift arm MP
MP roller holder ASSY
MP feed frame
Hoo
k
6a
6b
PE actuator MP B
Hoo
k
MP feed frame
PE actuator MP
8a
8c
8b
