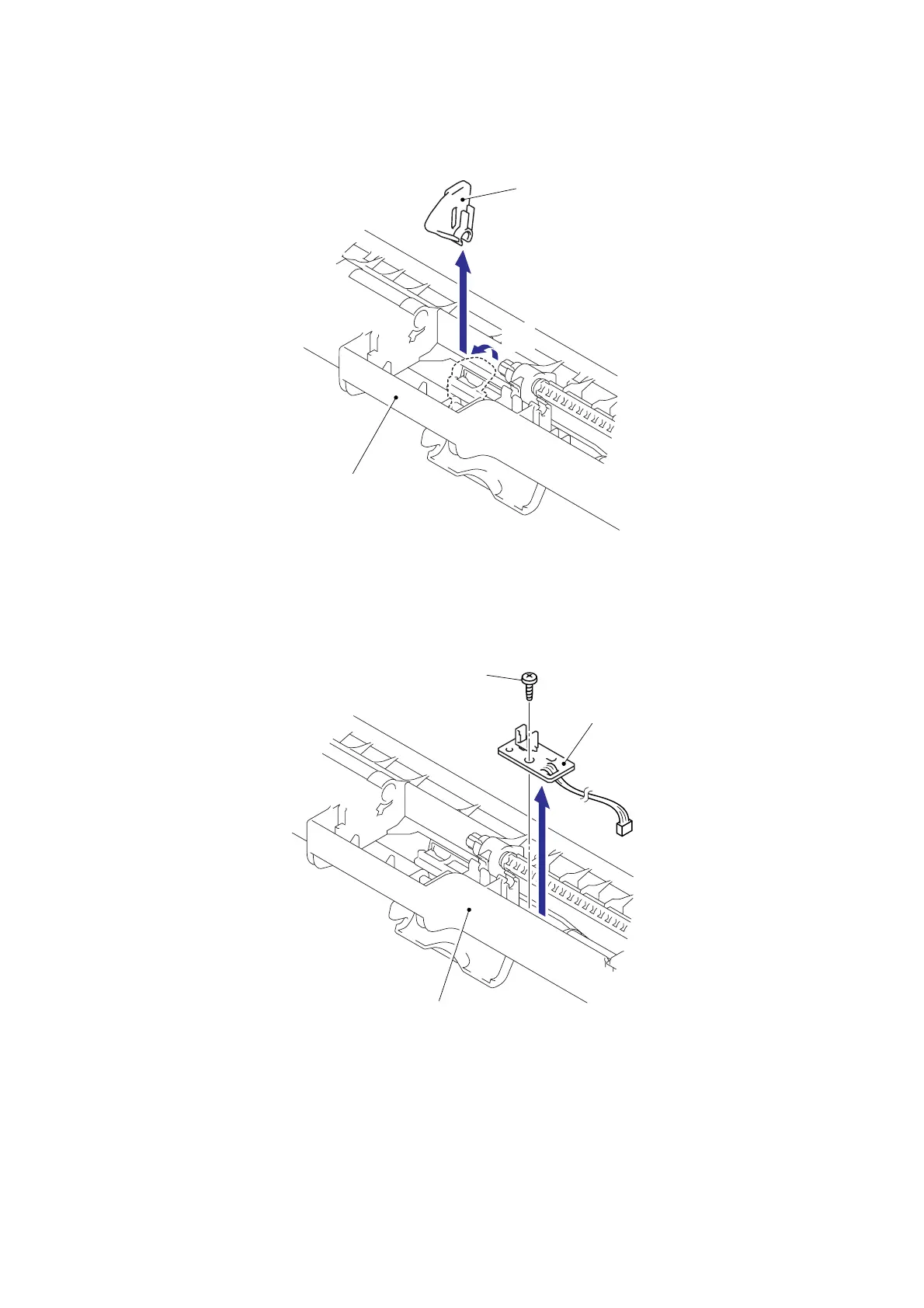

(9) Turn the PE actuator MP to the direction of the arrow 9a and pull it up to remove.
Fig. 5-179
(10) Remove the bind B M3x8 Taptite screw, and then remove the MP PE sensor ASSY.
Fig. 5-180
PE actuator MP
MP feed frame
MP feed frame
9a
9b
MP PE sensor ASSY
Taptite, bind B M3x8
