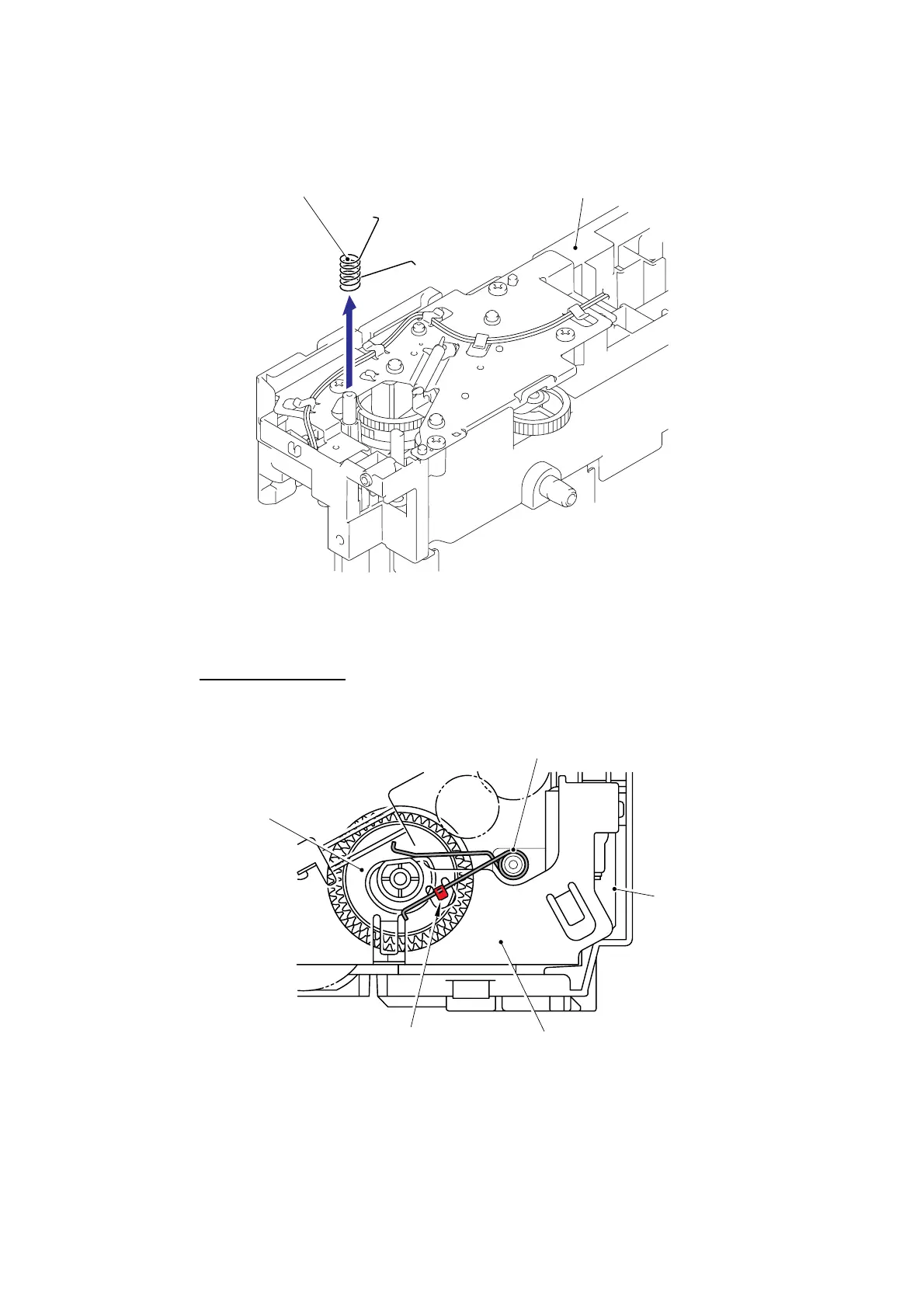

(3) Remove the T1 sector gear spring LT from the LT frame L.
Fig. 5-216

Assembling Notes
When assembling the T1 sector gear spring LT, ensure that its direction is correct referring
to the figure below.
Fig. 5-217
LT frame L
T1 sector gear spring LT
LT drive unit
T1 sector gea
r
T1 sector gear spring LT
LT frame L
Hoo
k
