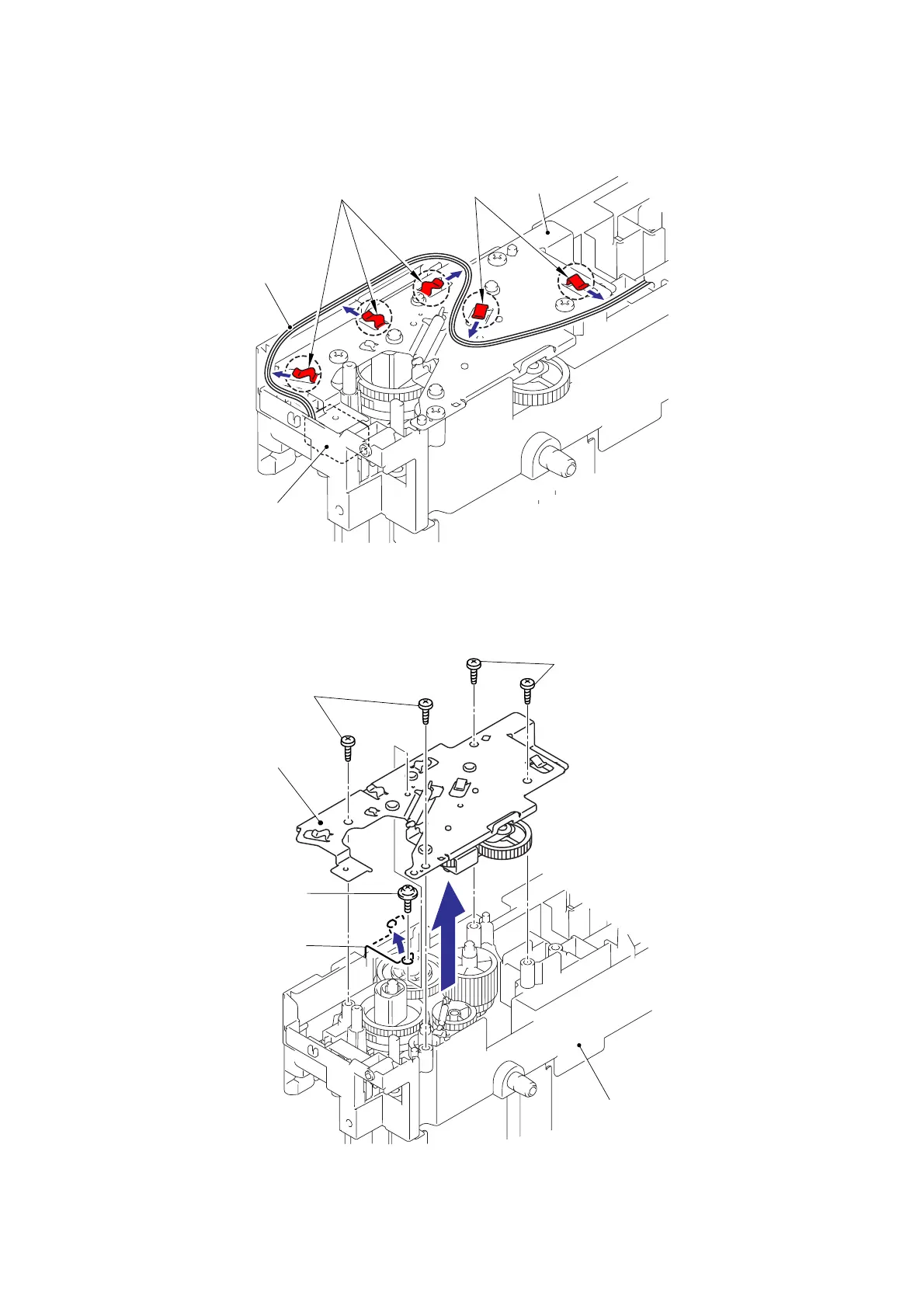

(4) Remove the LT solenoid harness from the hooks of the LT drive unit.
Fig. 5-218
(5) Remove the cup S M3x6 Taptite screw.
(6) Remove the four bind B M4x12 Taptite screws, and then remove the LT drive unit.
Fig. 5-219
LT drive unit
Hooks
Hooks
LT solenoid harness
LT solenoid ASSY
Taptite, bind B M4x12
Taptite, bind B M4x12
LT drive unit
LT frame L
Taptite, cup S M3x6
Ground wire top
