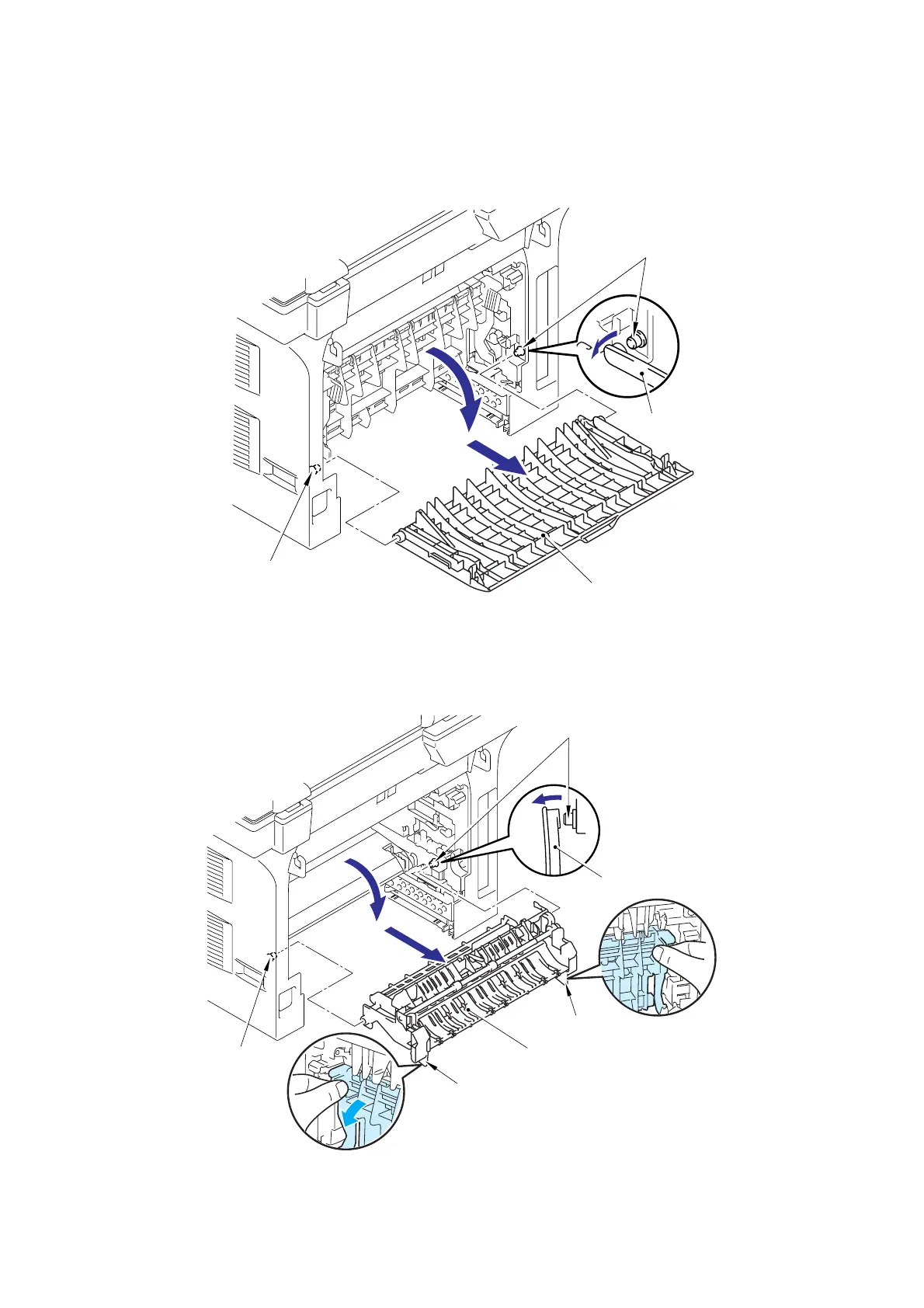

(9) Open the Back cover.
(10) Remove the Arms of the Back cover from the Pins on the machine body.
(11) Remove the Back cover.
Fig. 6-7
(12) Hold the Knobs on the Outer chute ASSY and pull down the Outer chute ASSY to your side.
(13) Remove the Arms of the Outer chute ASSY from the Pins on the machine body.
(14) Remove the Outer chute ASSY.
Fig. 6-8
Pin
Pin
Back cover
9
10
11
<Back side>
Arm
Pin
Pin
Outer chute ASSY
13
14
12
<Back side>
Arm
Knob
Knob
12
12
