Brother DCP-8065DN

6-7 Confidential

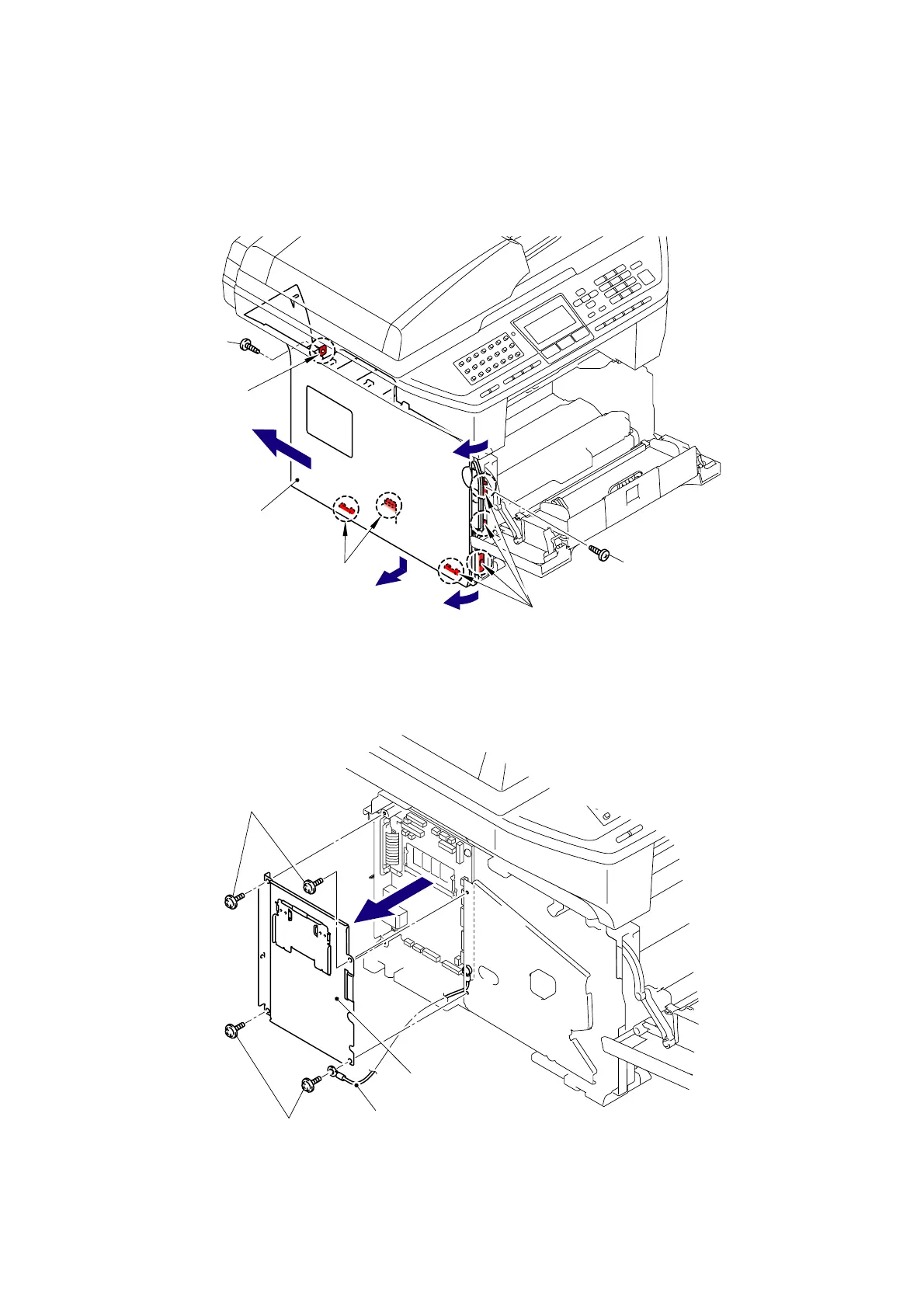

(15) Open the Front cover, remove the two bind B M4x12 Taptite screws, and then remove the
Side cover L by releasing the Hooks in the order of 15a to 15d.
Fig. 6-9
(16) Remove the four cup S M3x6 Taptite screws, remove the FG harness and then remove the
Shield cover.
Fig. 6-10
Taptite, cup S M3x6 SR
Shield cover
Taptite, cup S M3x6 SR
FG harness
Taptite, bind B M4x12
15a
15b
15c
15d
Hooks
Hooks
Hook
Side cover L
Taptite, bind B M4x12
<Front side>
