(17) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover R by
following the direction from 17a to 17d.

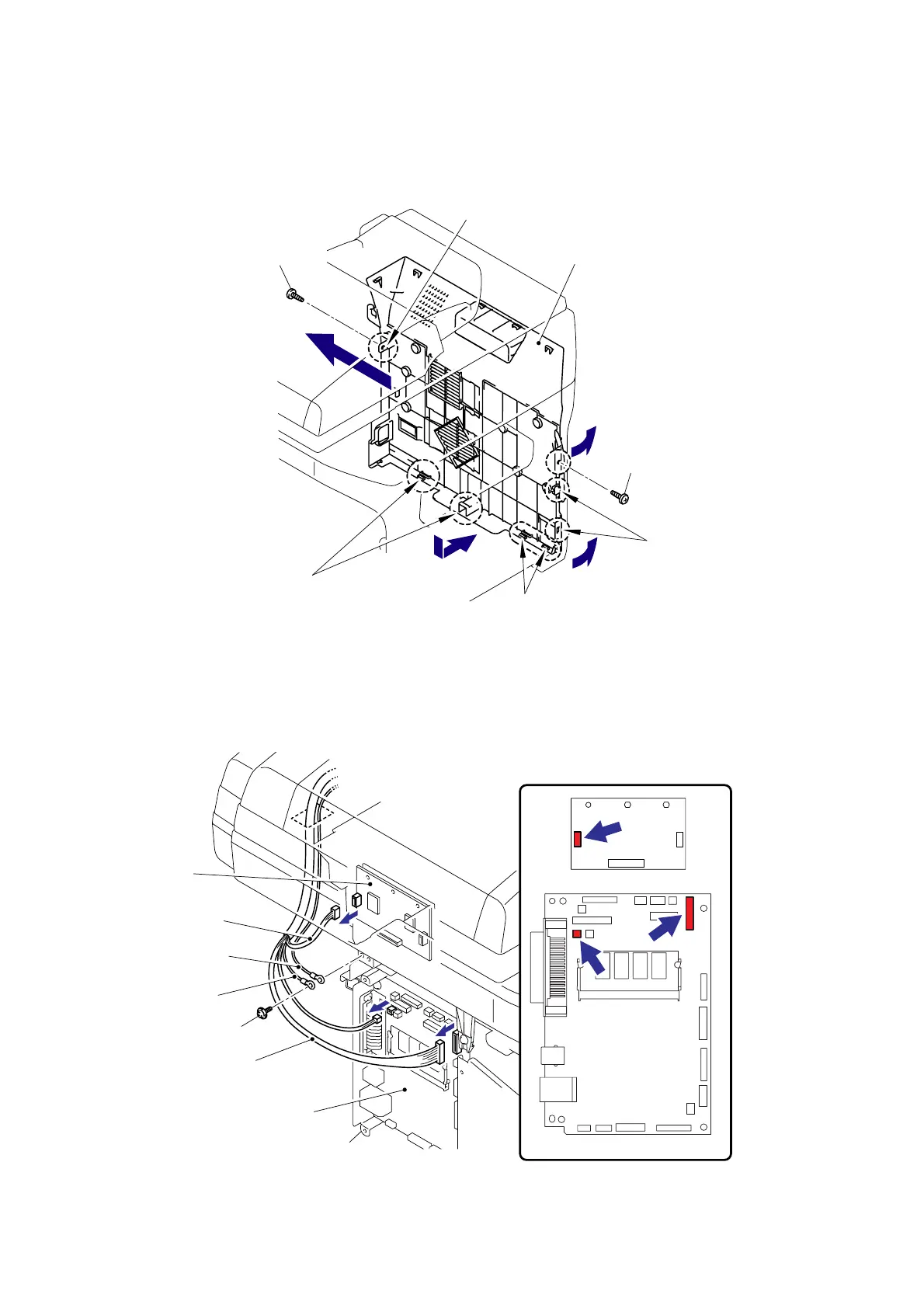

Fig. 6-11
(18) Remove the cup S M3x6 Taptite screw, remove the ADF FG harness and FB FG harness.
(19) Disconnect the Connector from the Driver PCB.
(20) Disconnect the two Connectors from the Main PCB.
Fig. 6-12
Driver PCB
Connector
(ADF motor harness)
FB FG harness
ADF FG harness
Main PCB
Connectors
(ADF relay harness)
Taptite, cup S M3x6
Taptite, bind B M4x12
Taptite, bind B M4x12
Side cover R
Hooks
Hooks
Hooks
Hook
17a
17b
17c
17d
<Front side>
Main PCB
Driver PCB
