Brother DCP-8065DN Service Manual

6-9 Confidential

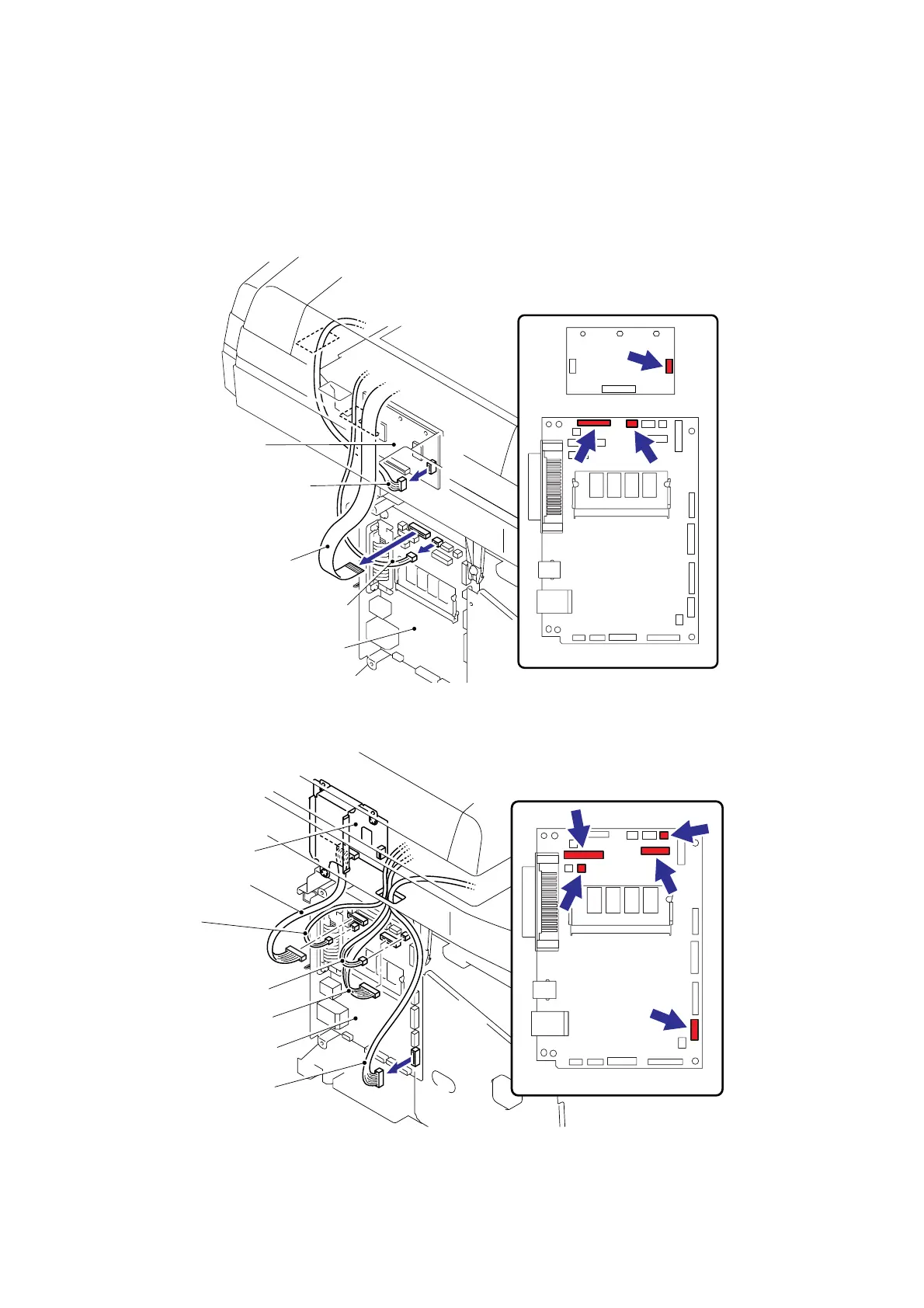

(21) Disconnect the connector of the Scanner motor harness from the Driver PCB.
(22) Disconnect the connectors of the Photo interrupter and FFC cable from the Main PCB.
NOTE:
After disconnecting flat cable(s), check that each cable is not damaged at its end or short-
circuited.
Fig. 6-13
(23) Disconnect the five connectors of the Panel harness from the Main PCB.
Fig. 6-14
Driver PCB
Battery harness
Panel PCB harness
Driver PCB
Scanner motor harness
FFC cable
Photo interrupter
Main PCB
Main PCB
N
CU harness
Speaker harness
Driver harness
Main PCB
Driver PCB
Main PCB

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
