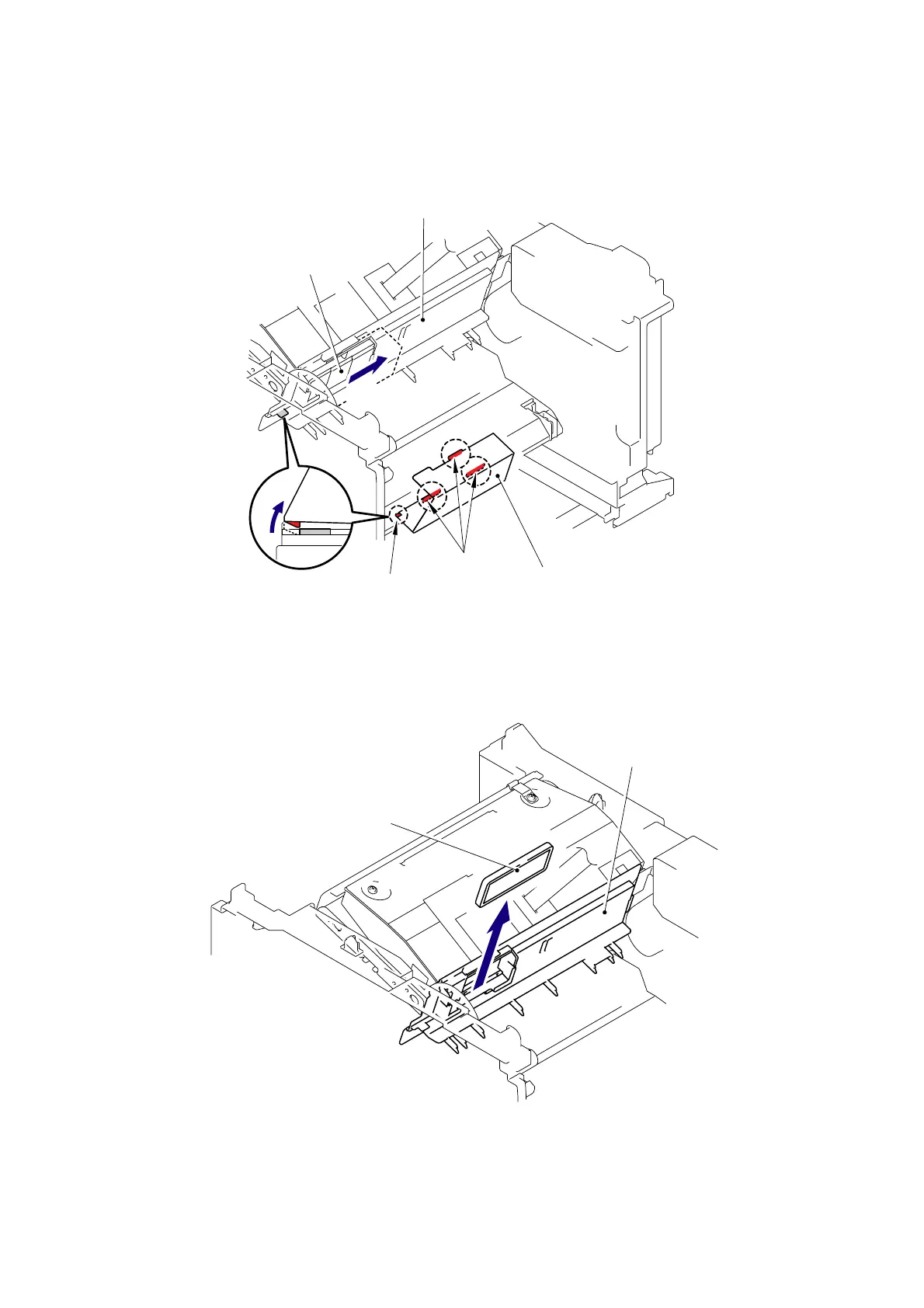

(36) Slide the Sub duct to the direction of the arrow 36b while pressing the three Hooks and
remove the Sub duct from the Air duct.
Fig. 6-25
(37) Remove the Filter from the Air duct.
NOTE: The filter is dirt. Be careful when disassembling or assembling it.
Fig. 6-26
Air duct
Filter
Air duct
Filter
Sub duct
Hooks
36a
36b
<Back side>
Hook
