Brother DCP-8065DN

6-16 Confidential

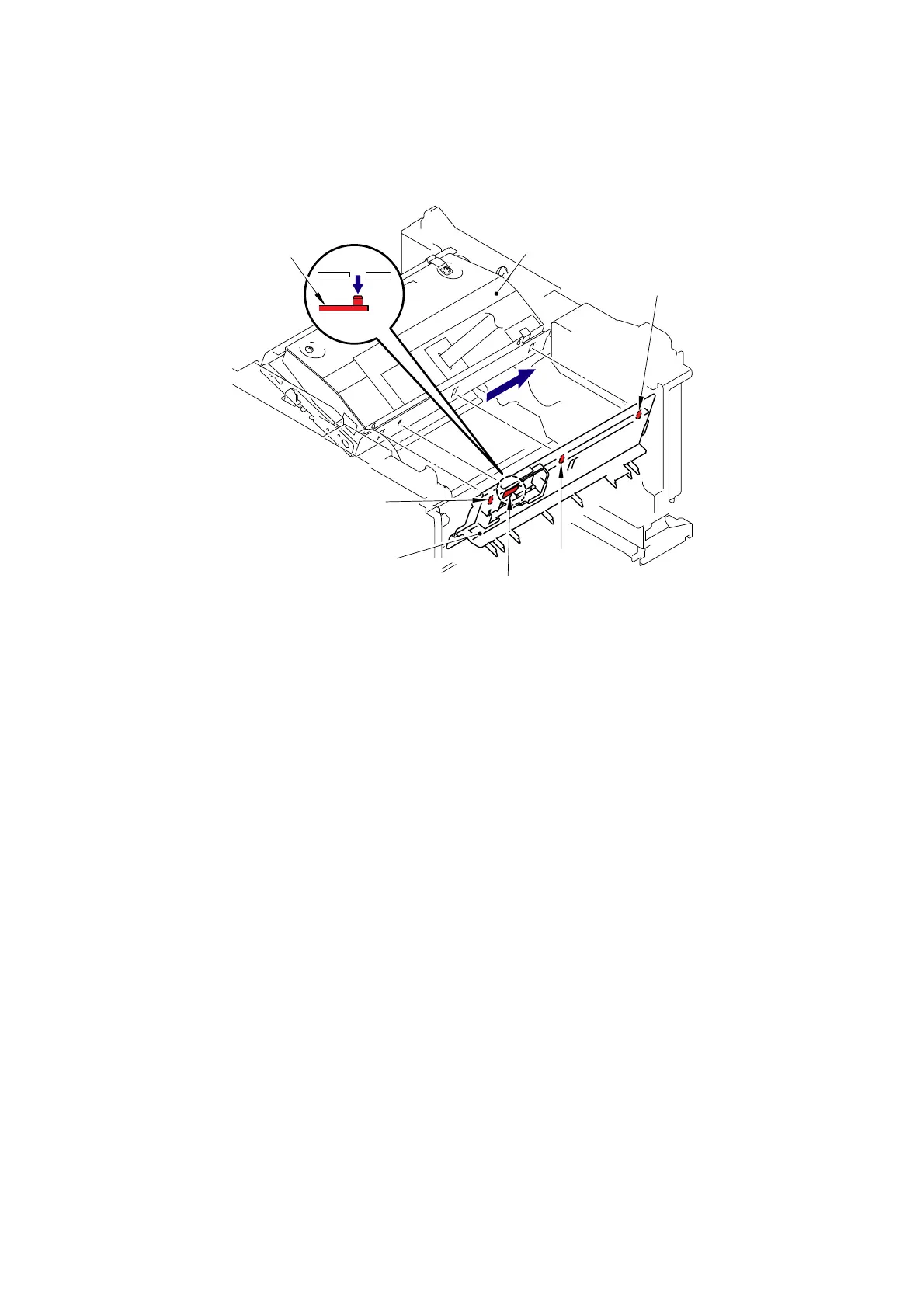

(38) Remove the Pin of the Air duct from the frame. Slide the Air duct to the direction of the
arrow 38b and remove the Air duct.
Fig. 6-27
Laser unit
Air duct
Hook
Pin
Pin
Hook
Pin
38b
38a
<Back side>
