(39) Remove the six cup S M3x6 Taptite screws.
(40) Remove the two Flat cable from the Main PCB.
NOTE:
After disconnecting flat cable(s), check that each cable is not damaged at its end or short-
circuited.
(41) Remove the Protective film.
(42) Pull out the flat cable from the Core.
(43) Remove the Laser unit.
NOTE:
- Be careful not to lose the Protective film attached on the flat cable.
- Do not touch the Laser scanner window directly.

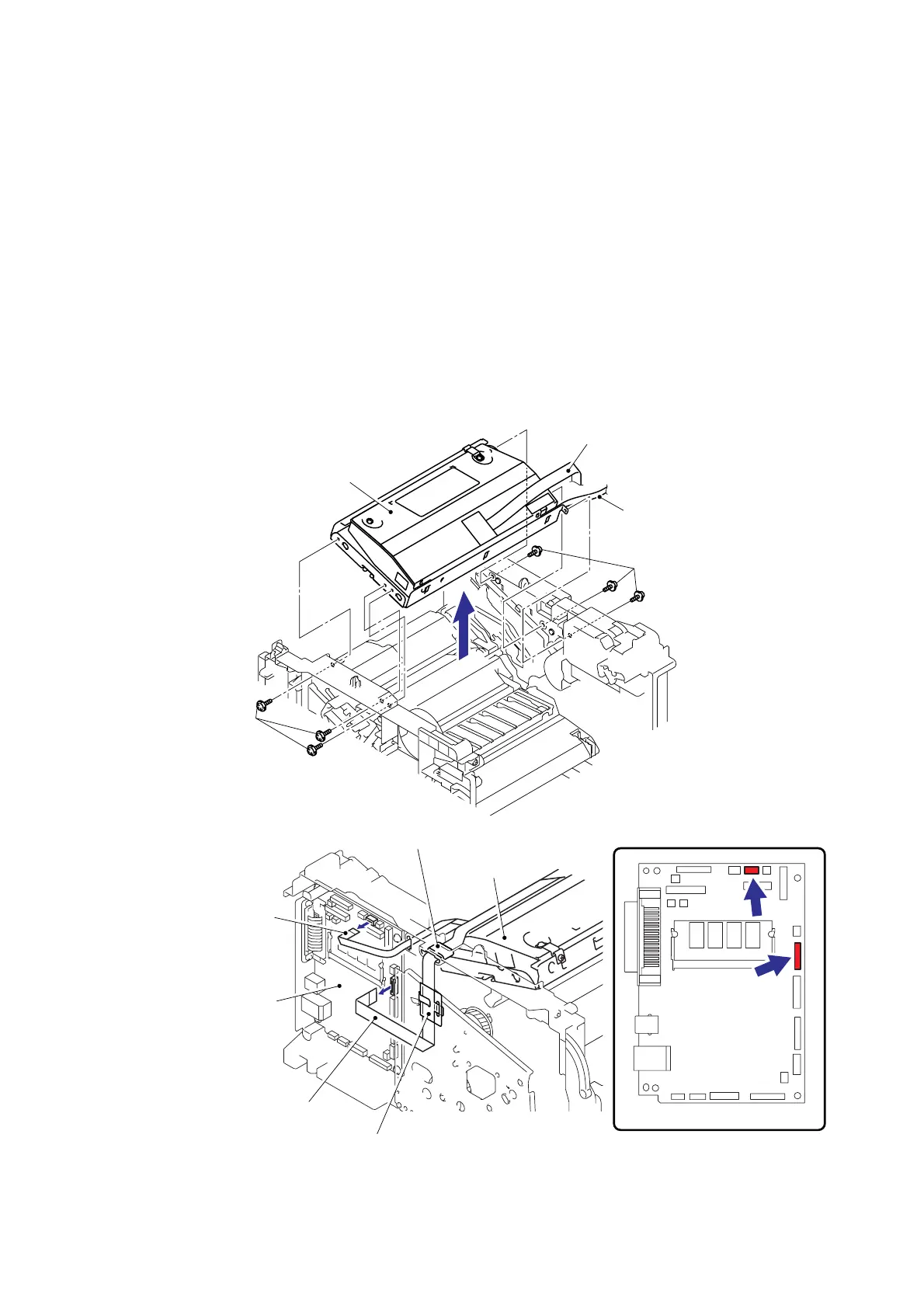

Fig. 6-28
Taptite, cup B M3x6
Taptite, cup B M3x6
Core
Protective film
Laser unit
Laser unit
Polygon motor
(Flat cable)
LD harness
(Flat cable)
Main PCB
Main PCB
Polygon motor (Flat cable)
LD harness (Flat cable)
