Brother DCP-8065DN Service Manual

6-18 Confidential
<Installing Procedure>

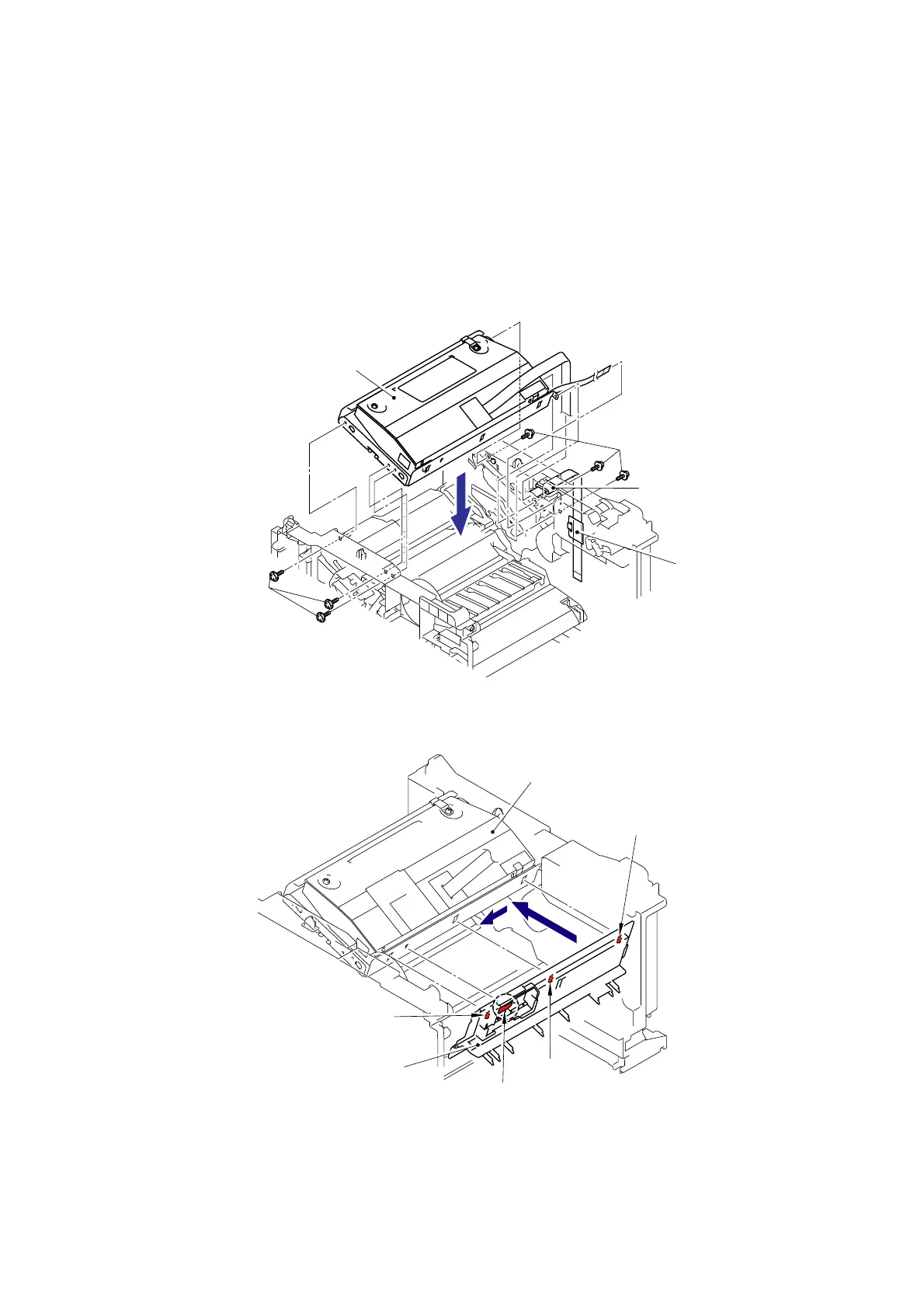

(1) Secure the Laser unit with the six cup S M3x6 Taptite screws.
(2) Put the flat cable through the Core and Protective film.
(3) Install the flat cable. (Refer to “HARNESS ROUTING” in Chapter 5.)
NOTE:
When connecting flat cable(s), do not insert them at an angle. After insertion, check that the
cables are not at an angle.
Fig. 6-29
(4) Install the Air duct into the Laser unit.
Fig. 6-30
Taptite, cup B M3x6
Taptite, cup B M3x6
Laser unit
Hook
Hook
Pin
Hook
Air duct
Laser unit
4a
Core
Protective film
4b

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
