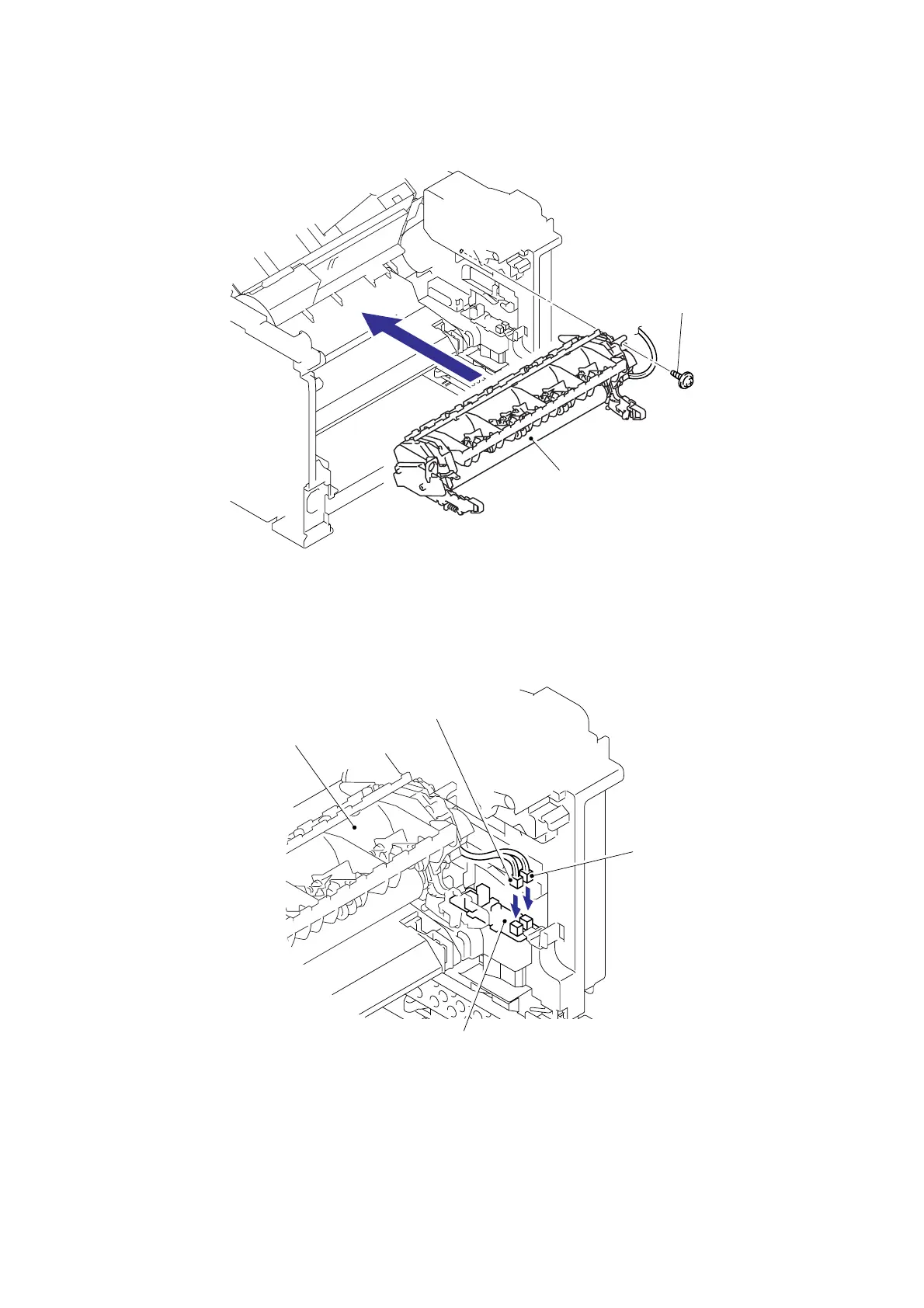

(7) Secure the Fuser unit with the bind B M4x16 Taptite screw.
Fig. 6-36
(8) Connect the connectors of the Thermistor ASSY M and Thermistor ASSY S onto the Relay
rear PCB ASSY.
Fig. 6-37
Taptite, bind B M4x16
Fuser unit
Thermistor ASSY S
Thermistor ASSY M
Fuser unit
Relay rear PCB ASSY
